| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W018 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Waterproof Female And Male Wire | Wire Length: | 150mm Or Customized |
|---|---|---|---|
| Application: | Outdoor LED | Rated Voltage: | DC 0-24V（AC 110V/220V） |
| IP Code: | IP67 | Wire Color: | Black Or Customized |
| Rated Current: | 1-5A,1-3A | ||
| Highlight: | 24V water resistant electrical cable,150mm Waterproof Cable Wire |
||

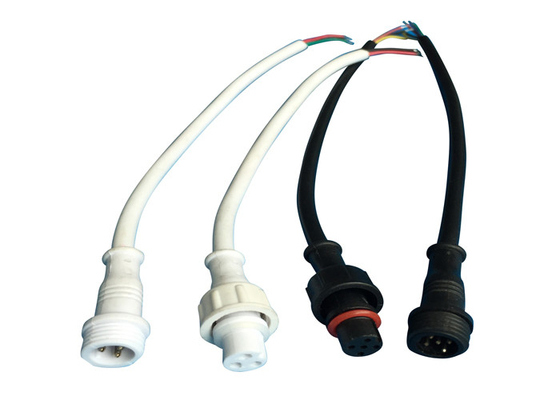

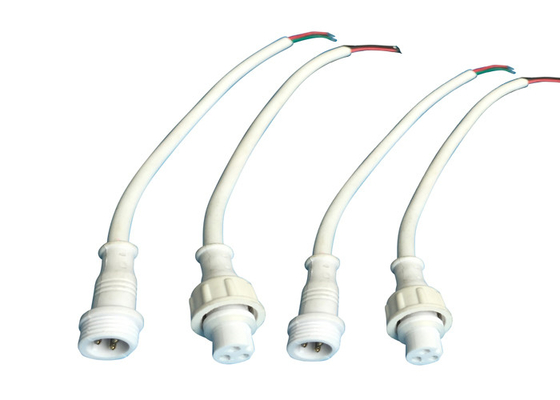

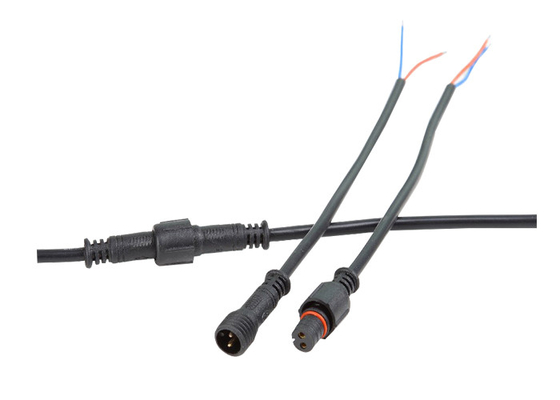

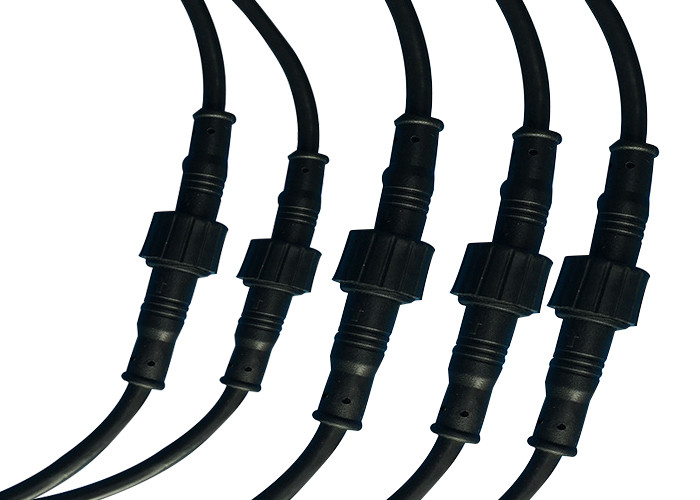

150mm Waterproof Cable Wire Black IP67 Low Frequency Lamp Power Supply Waterproof Wires
Product information:
Waterproof cable: The outer skin is made of waterproof rubber, and the filling of the cable is also made of waterproof rubber. The jacket of the cable is made of waterproof rubber. It is suitable for submersible pumps, coal mines, underwater operations, water scene lights and other water treatment equipment.
Parameter:
| Product name | Waterproof female and male wire |
| Wire length | 150mm or customized |
| Application | Outdoor LED |
| Material | PVC, rubber, silicone, PU or customized |
| Shape | Round |
| Rated voltage | DC 0-24V(AC 110V/220V) |
| Rated current | 1-5A,1-3A |
| Operation temperature | -40℃~120℃ |
| Contact material | Cooper |
| Feature | Waterproof |
| IP code | IP67 |
| Work frequency | Low frequency |
| Wire Color | Black or Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
Cable waterproof test method, the longitudinal water resistance of the cable can be tested and judged by the water penetration test of IEC 60502-1997 ANNEX D (normative) or GBT 12706.2-2002 Appendix D (standard catalog); At present, it is mainly determined by indirect methods, such as checking whether the HDPE non-metallic sheath or non-metallic sheath is defective. If these sheaths are determined to be intact, then the cable is considered to have good radial water resistance. However, many users have raised some questions about this method, and caused some disputes and lack of persuasion. Therefore, cable manufacturers and users now urgently need a test method to determine the radial water resistance of the cable. It can avoid the controversy caused by the manufacturer and user due to the lack of the radial water resistance test method.
For XLPE insulated cables above 110kV, metal sheath is mainly used to make the cables meet the waterproof requirements. The characteristic of the metal sheath is that it is completely impermeable, so the cable with the metal sheath has very good radial water resistance. The main types of metal sheath are: hot-pressed aluminum sleeve, hot-pressed lead sleeve, welded wrinkled aluminum sleeve, welded wrinkled steel sleeve, cold drawn metal sleeve, etc.
