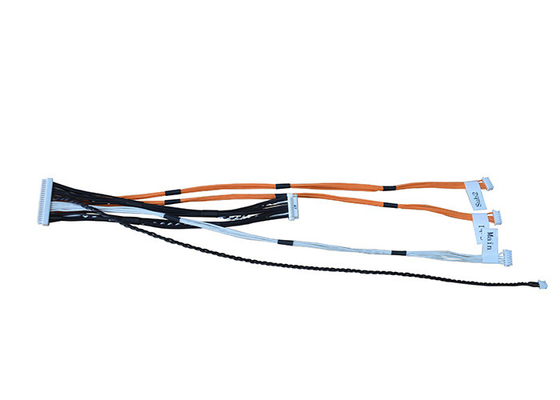

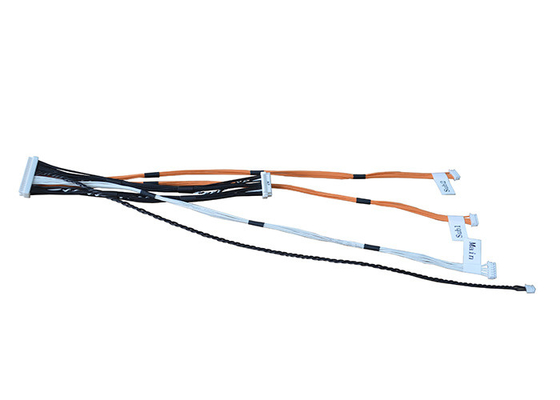

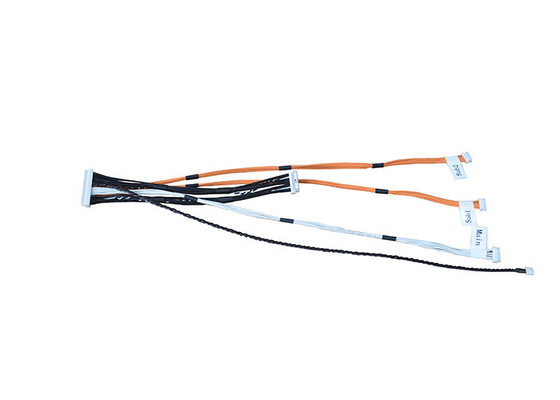

0.5mm Pitch Electronic Wiring Harness Designed Weaved Wire Harness 5Connectors 100mm Cable
Product introduction

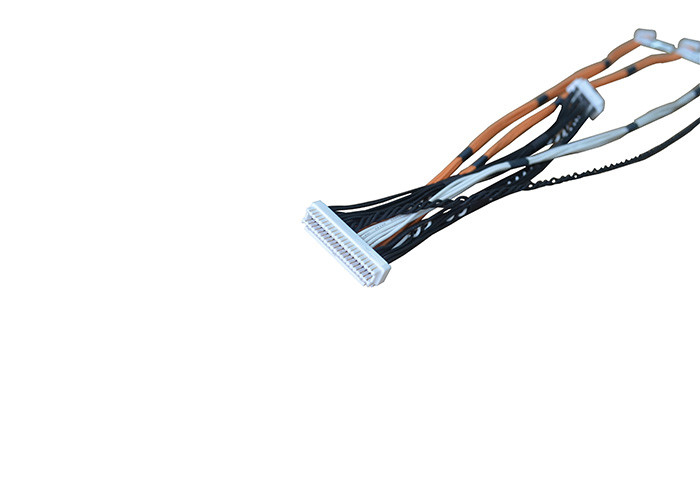

The wire harness is designed and manufactured with 6 connectors ,cThe wire number of each connector is fixed.we choose 3 colors for 28 wires . The whole wire harness are manufacture according to customer requirements such as connector ,length ,insulation length color order and etc.
Parameters:
| Connectors | JST 0.5mm Pitch 28pins |
| Withstand voltage | 250V~1000V |
| Rated voltage | 50V~250V |
| Output current | 1.0A~7.0A |
| Insulation resistance | 1000MΩ Min |
| Contact resistance | 20mΩ Max |
| Pitch | 0.8-6.35mm |
| Wire length | 50mm or According to the customers' requirements |
| Wire | 22AWG |
| Wire Color | Customized |
| Pin | 2-64 pins |
| Test | Professional breakover and pulling force test before goods sent out |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Cable color,lenght | According to the customers' requirements |
| Insulation | Rubber,Silica,PE,Teflon...etc |
| Connector Type | Original OEM or Replacement |
| Application | Automotive,Electrical,Industry |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
This wire is manufactured from superior materials, this harness ensures peerless quality and uncompromising reliability. This wiring harness can also come in handy in other situations. Adopot 28 wires of 22AWG ,the wire leSngth is customized .the pitch is 0.5mm , Before deliver the products will have professional breakover and pulling force test .can provide sample for evaluating and testing . the sample is free charge ,but customer should pay for the sample shipping cost .(Except for complex samples).
