| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-C119 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and Carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 PCS/per week |
| Material: | Nylon, PBT, Copper，PVC | Pitch: | 0.3 Mm |
|---|---|---|---|
| Pins: | 20 Pins | Length: | 35 Mm Or Customized Length |
| Color: | Black Or Customized | Connector: | Customized Connector |
| Sample: | Available | Express: | TNT DHL FedEx UPS EMS |
| Delivery Time: | 3-15 Days | Customized: | Available |
| High Light: | 600v Cable Wiring Harness,0.3mm Pitch Cable Wiring Harness,35mm Length Cable Wiring Harness |
||

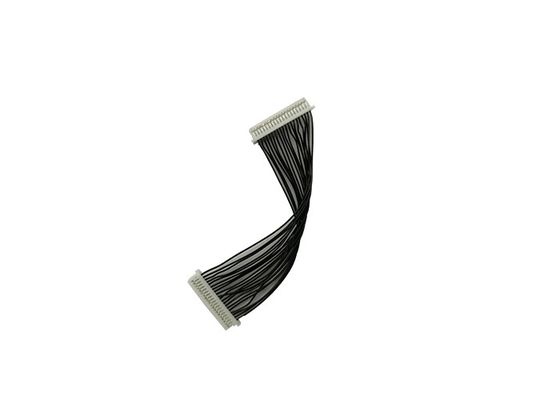

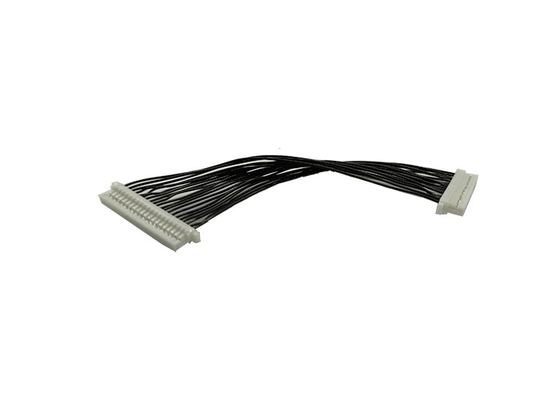

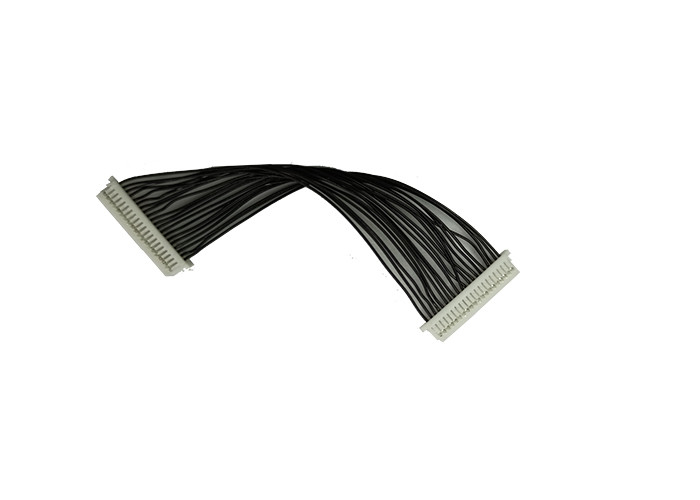

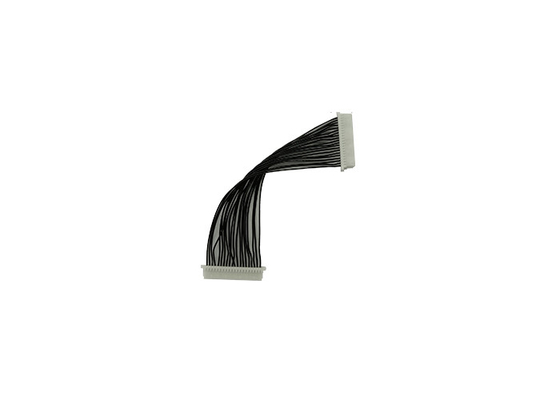

UL 1015 Black superfine wire for electrical products 35 mm length 0.3 mm pitch
Data Sheet :
| Model No. | SYH-C119 |
| Wire core material | Bare Copper Wire |
| Type of connector | According to client‘s require |
| Length of wire | 5 cm or Customized |
| Connector type | Housing,terminal |
| Wire size | UL 1015 or Customized |
| Outer wrapping material | PVC or Customized |
| Usefulness | Electrical connection |
| Sample | Available |
| Brand name | Sanyouhe |
| Place of origin | Jiangsu,China |
| Certification | RoHS,CE,ISO9001 |
Style 1015 Single conductor with extruded insulation :
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:600v
3. according to:UL subject 758,UL1581,CSA C22.2
4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG
5. PVC insulation
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7. uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass ROHS
9. The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).
| UL TYPE | Gauge | Construction | conductor | insulation | wire O.D | Max Cond. | packing | |
| (AWG) | (no/mm) | outer diameter | thickness | (mm) | resistance | |||
| (mm) | (mm) | (Ω/km ,20ºC | FT/ROLL | METER/ROLL | ||||
| 1015 | 30 | 7/0.1 | 0.3 | 0.8 | 1.9 | 381 | 2000 | 610 |
| 28 | 1/0.32 | 0.32 | 0.79 | 1.9 | 227 | |||
| 7/0.127 | 0.38 | 0.81 | 2 | 239 | ||||
| 7/0.127 OS-1 | 0.38 | 0.81 | 2 | 239 | ||||
| 26 | 1/0.404 | 0.4 | 0.8 | 2 | 143 | |||
| 7/0.16 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 7/0.16 OS-1 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 24 | 1/0.511 | 0.51 | 0.8 | 2.1 | 89.3 | |||
| 11/0.16 | 0.61 | 0.82 | 2.25 | 94.2 | ||||
| 7/0.2 OS-1 | 0.6 | 0.83 | 2.25 | 94.2 | ||||
| 22 | 1/0.643 | 0.64 | 0.8 | 2.25 | 56.4 | |||
| 17/0.16 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 7/0.254 OS-1 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 20 | 1/0.813 | 0.81 | 0.8 | 2.4 | 35.2 | |||
| 26/0.16 | 0.94 | 0.81 | 2.55 | 36.7 | ||||
| 7/0.32 OS-1 | 0.96 | 0.8 | 2.55 | 36.7 | ||||
| 18 | 1/1.024 | 1.02 | 0.82 | 2.65 | 22.2 | 1000 | 305 | |
| 41/0.16 | 1.18 | 0.81 | 2.8 | 23.2 | ||||
| 7/0.404 OS-1 | 1.2 | 0.8 | 2.8 | 23.2 | ||||
| 16 | 1/1.129 | 1.29 | 0.81 | 2.9 | 14 | |||
| 26/0.254 | 1.49 | 0.81 | 3.1 | 14.6 | ||||
| 14 | 1/1.6 | 1.6 | 0.8 | 3.2 | 8.78 | |||
| 41/0.254 | 1.88 | 0.81 | 3.5 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 0.82 | 4 | 5.64 | |||
| 10 | 7/15/0.254 | 3.42 | 0.82 | 5.05 | 3.54 | |||
| 8 | 7/24/0.254 | 3.99 | 1.21 | 6.4 | 2.23 | 328 | 100 | |
| 6 | 4/31/0.37 | 4.75 | 1.86 | 8.5 | 1.4 | |||
| 4 | 7/28/0.37 | 5.98 | 2 | 10 | 0.9 | |||
| 2 | 7/44/0.37 | 8.49 | 1.76 | 12 | 0.56 | |||
| 1 | 333/0.4 | 9.6 | 2.03 | 13.5 | 0.1289 | |||
| 1/0 | 418/0.4 | 10.77 | 15 | 0.1022 | ||||
| 2/0 | 534/0.4 | 12.19 | 16.5 | 0.08108 | 164 | 50 | ||
| 3/0 | 664/0.4 | 13.8 | 17.8 | 0.06431 | ||||
| 4/0 | 536/0.5 | 15.26 | 20 | 0.05099 | ||||
Frequently asked questions :
Q1. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?
A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q2. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q4. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
