CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW016 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Yellow FFC Flexible Flat Cable | Conductor: | 7/0.12MM |
|---|---|---|---|
| Conductor Elongation: | 18℅↑ | Withstand Voltage: | 2KV 10mA |
| PIN: | 16pins Or Customized | Pitch: | 1.27mm Or Customized |
| Wire Gauge: | 28AWG Or Customized | Wire Length: | 280mm Or Customized |
| High Light: | 28 AWG FFC flat cable,1.27mm flat flex cable |
||

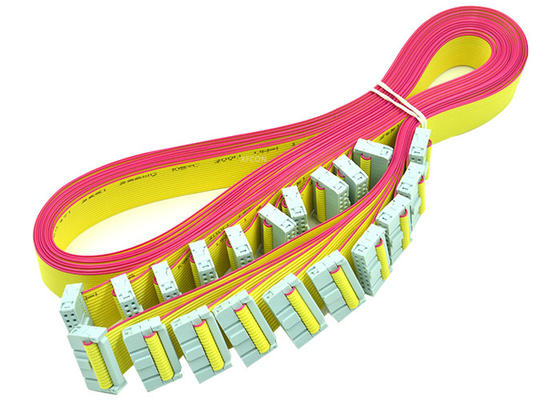

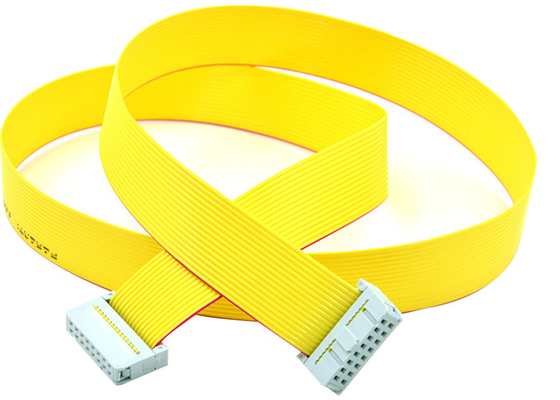

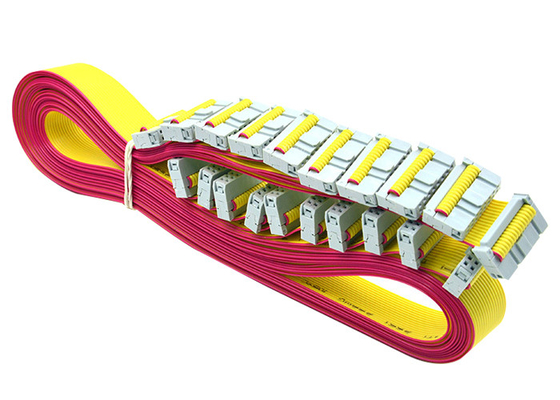

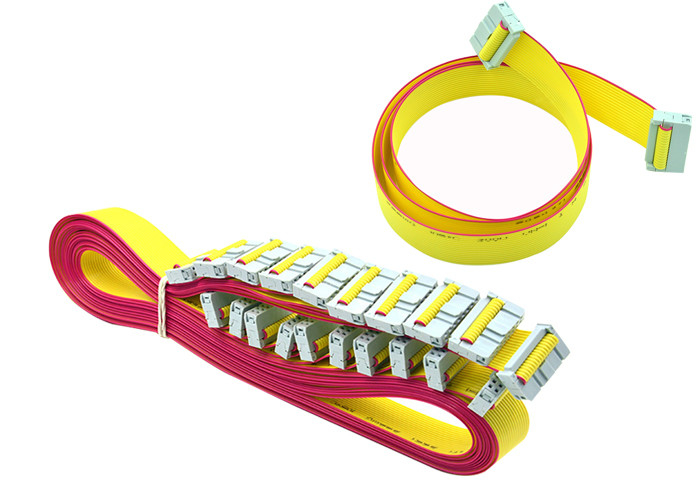

28AWG Custom Wiring Harness 1.27mm Pitch 16pins Yellow FFC Flexible Flat Cable
Product information :
Flexible Flat Cable (FFC) can arbitrarily choose the number and spacing of wires to make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, improve production efficiency, and is most suitable for moving parts and motherboards, PCB boards Used as a data transmission cable between PCB boards and miniaturized electrical equipment. Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.
Parameter:
| Product name | Yellow FFC Flexible Flat Cable |
| Conductor | 7/0.12MM |
| Conductor elongation | 18℅↑ |
| Withstand voltage | 2KV 10mA |
| Terminal | Copper or customized |
| Outer diameter | 3.0mm or customized |
| Rated temperature | -40°C~+105°C |
| Interface type | AC/DC or customized |
| Insulation material | PVC or customized |
| Resistance | ≤237 or customized |
| Connectors | Customized |
| Work frequency | Low frequency or customized |
| Shape | Strip or customized |
| PIN | 16pins or Customized |
| Pitch | 1.27mm or customized |
| Wire gauge | 28AWG or customized |
| Wire length | 280mm or Customized |
| Wire Color | Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
Flexible Flat Cable (FFC) Common models are as follows:
Type A: The two ends are connected and the reinforcing plate is pasted on the insulating adhesive paper;
Type B: The reinforcement board is pasted directly on the insulating adhesive paper;
Type C: The reinforcing plates at both ends are directly pasted on the conductor;
Type D: The reinforcement plates at both ends are directly pasted on the conductor cross;
Type E: one end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F: The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G: Solder directly at both ends.
SYH FFC (Flexible Flat Cables) are flat copper conductors of various dimensions laminated with high-quality insulation foils. They guarantee significant competitive advantages over conventional cables in your application.
SYH FFC-cables ensure a fast and easy connection between electric and electronic components in modular and solderable modules. In comparison to traditional round cables and wires the use of flexible film cables gives you a major competitive advantage because of low costs and easy processing.
