| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L005 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | HD Laptop LCD Screen Cable LVDS Cable | Application: | Display |
|---|---|---|---|
| Pin: | 30pins | Conductor Material: | Copper, Aluminum, CCAM, CCA, Customized |
| Insulation Material: | Rubber, Silica Gel, PE, PVC | Connector: | I-PEX Or Customized |
| Length: | Customized | Color: | Customized |
| Highlight: | I-PEX LCD EDP Cable,30 Pins LVDS Cable |
||

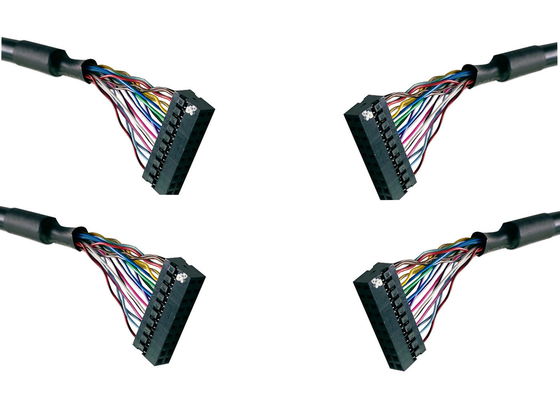

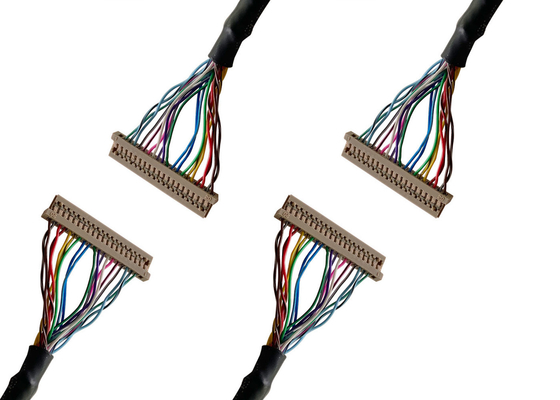

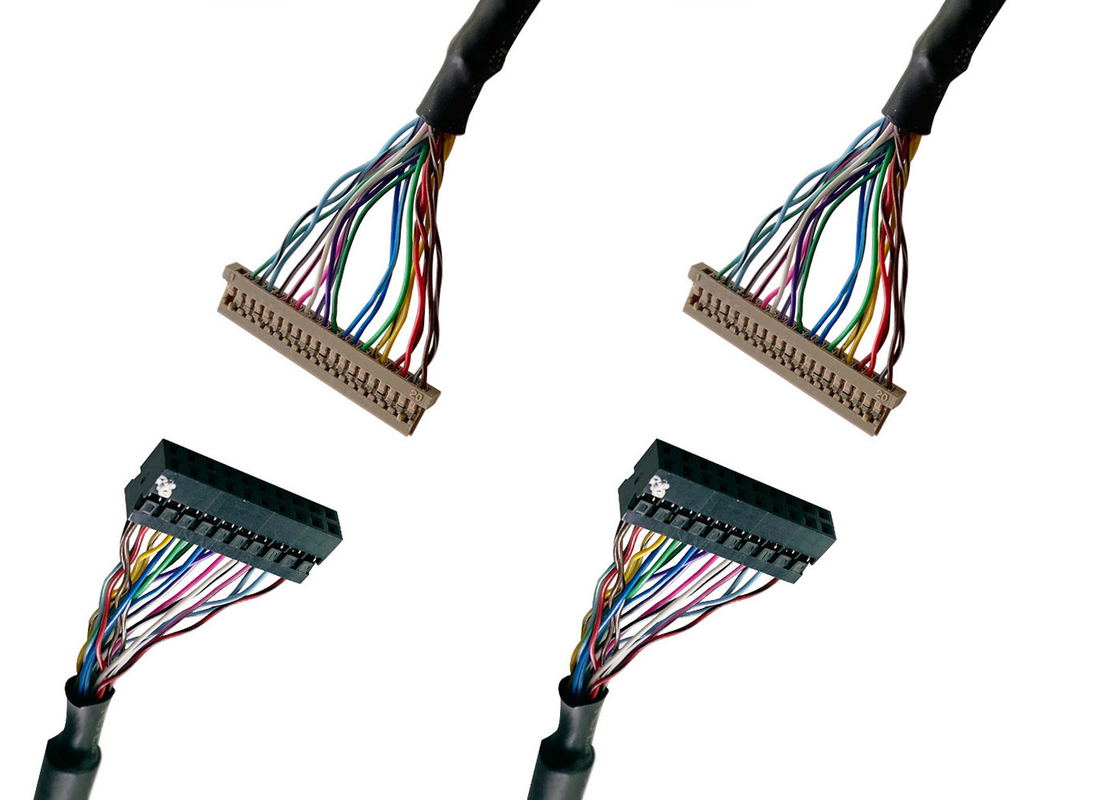

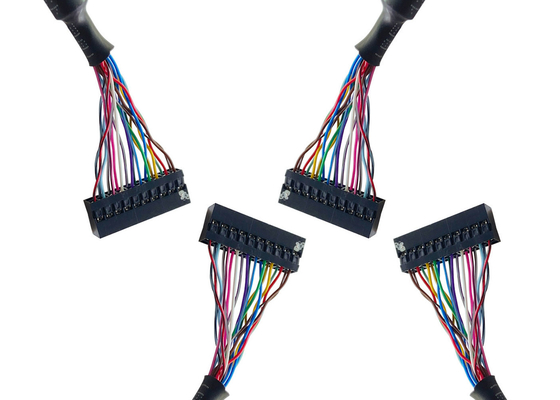

I-PEX TV Screen Cable Customization HD Laptop LCD Screen Cable EDP Screen Cable
Product introduction
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L005 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire Materials |
Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | Customized |
| Length | Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Characteristic
It provides a high data transfer rate while having very low power consumption. In addition, it has many other advantages:
1. Power supply voltage compatibility as low as 2V
2. Low noise
3. High noise suppression capability
4. Reliable signal transmission
5. Can be integrated into system-level IC
6. The data rate of products using LVDS technology can be from several hundred Mbps to 2Gbps.
7. It is driven by current. The voltage is obtained by placing a load on the receiving end. When the current flows in the forward direction, the output of the receiving end is 1, and otherwise it is 0.
8. Its swing range is 250mv-450mv.
9. This technology is based on ANSI/TIA/EIA-644LVDS interface standard.
Collapse and edit the interface standard of this paragraph
The LVDS interface is a common interface standard for LCD Panels, and most of them are used on displays with a size of 7 inches or more. Take 8-bit Panel as an example, including 5 groups of transmission lines, 4 of which are data lines, representing Tx0+/Tx0-...Tx3+/Tx3-. There is also a group of clock signals, representing TxC+/TxC-. Correspondingly, there are 5 groups of receiving lines at the end of the Panel. If it is a 6-bit Panel, there are only 3 sets of data lines and a set of clock cables.
