| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI008 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | FC Butterfly Clasp Rehearsal IDC Ribbon Cable Rainbow Cable | Connector: | 2.54mm Connector Or Customization |
|---|---|---|---|
| Pin: | 16pins | Wire: | 28AWG |
| Sheath Material: | PVC | Color: | Colorful And Black. |
| Quality: | 100% Testing Before Shipment | Express: | DHL FEDEX UPS TNT |
| Highlight: | 2.54mm 16 pin ribbon cable,28AWG IDC Ribbon Cable |
||

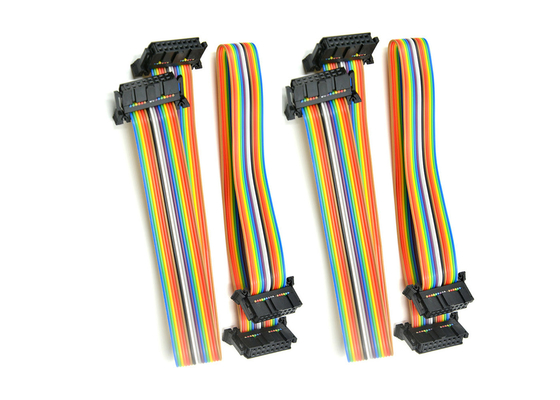

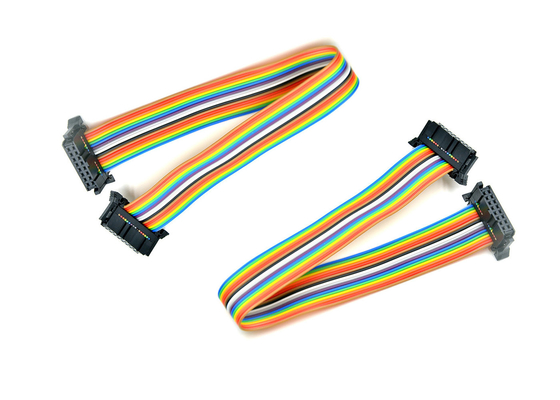

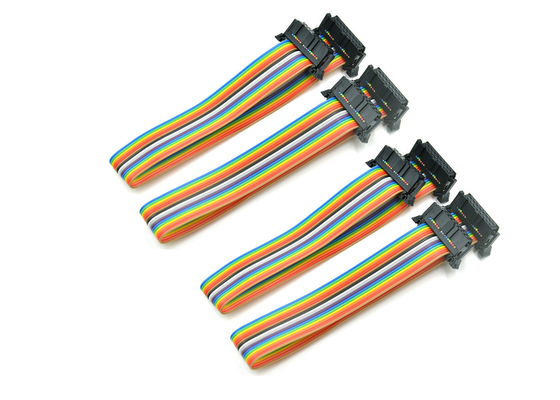

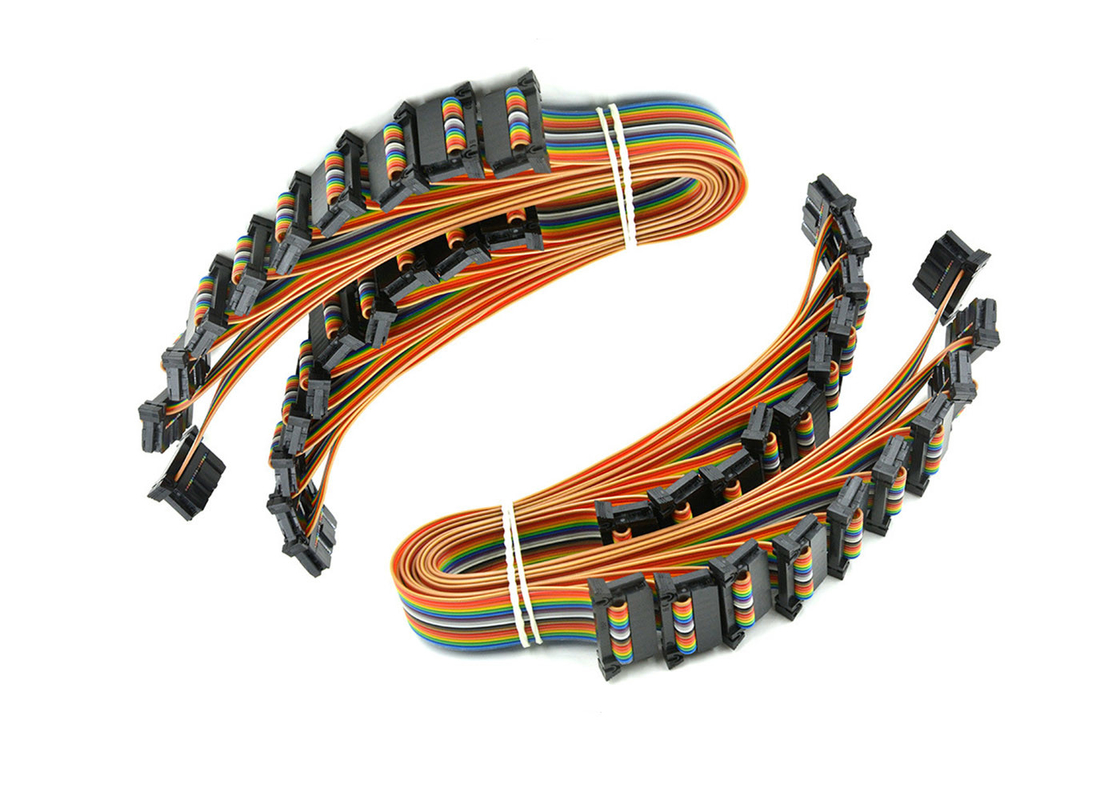

FC Butterfly Clasp Rehearsal Cable 2.54mm IDC Ribbon Cable 16P Finished Cable
Product introduction
A ribbon cable is a flat, thin cable composed of multiple small-grade cables placed parallel to each other. With each core situated side by side, they form a wide-flat cable resembling a piece of ribbon, hence its name. This type of cable is mostly used in electronic systems that require multiple data buses to link internal peripherals, such as disk drives to their respective drive controllers.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-FI008 |
| Application | Electronic,Automotive,Electrical,Industry,Home application |
| Connectors | 16pins or Customized |
| Wire | 28AWG |
| Wire length | 150mm or According to the customers' requirements |
| Wire Color | colorful or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Features:
1. Small size and light weight is the only solution to meet the requirements of miniaturization and movement;
2. It can be moved, bent and twisted without damaging the wire, and can meet different shapes and special package sizes;
3. The IDC Ribbon cables has excellent electrical properties, dielectric properties and heat resistance;
4. The IDC Ribbon cables has higher assembly reliability and quality.
Product name: 2.54IDC finished butterfly buckle rehearsal line-16P
Rehearsal line spacing: 1.27MM (Another: 0.635MM 1.0MM 2.0MM 2.54MM)
Rehearsal wire specification: 28AWG (Another: 32AWG 30AWG 26AWG 24AWG)
Copper wire structure material: first plated and then stranded (Another: first stranded and then plated copper-clad steel aluminum magnesium wire 7--12 strands of copper wire)
Copper conductor: 7/0.127MM [Conventional 7/0.08MM 7/0.09MM 7/0.1MM 7/0.16MM 7/0.2MM (7 is 7 strands of copper wire)]
Outer cover color: color (other gray cable, black cable)!
Packing: 10 bars per bundle, 10 bags per bag
Conductor diameter 0.12±0.005mm
Conductor elongation 18℅↑
Conductor cross-sectional area 0.36mm2
Conductor pitch 10.7mm↓
Insulator thickness minimum 0.10mm average 0.23mm
Wire diameter thickness 0.9±0.05mm
Insulation elongation 100.00℅
Insulator tensile strength 1.066Kg/m㎡↑
Spark test 3.0KV/0.15SPC↑
Withstand voltage 2KV 10mA/
Conductor resistance ≤237 Ohm/RM↓
Insulation resistance ≥100m ohm/RM↑
Capacitance 40PF/M
Impedance 100 ohm
Time delay 4
Working temperature: -40°C~+105°C
Insulation cover: environmental protection PVC 45P (RoHS) 8058 gray
Testing requirements:
Good appearance, plastic parts must not have injection defects, etc.
Metal parts must not have defects such as scratches and deformations
On-off performance meets specified requirements
Widely used in various connectors and connectors such as computers, instruments, machines, appliances, automobiles, color TVs, air conditioners, LED displays, DVDs, VCDs, etc.
