| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI020 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Work Frequency: | Low Frequency | PIN: | 14 Pins |
|---|---|---|---|
| Pitch: | 1.27mm | Wire Gauge: | 28AWG Or Customized |
| Wire Length: | 150mm Or Customized | Wire Color: | Gray Or Customized |
| Insulation Resistance: | 1000mΩ Min | Insulation Material: | PVC |
| Highlight: | 28 AWG flexible flat wire,14 pins flat flex cable |
||

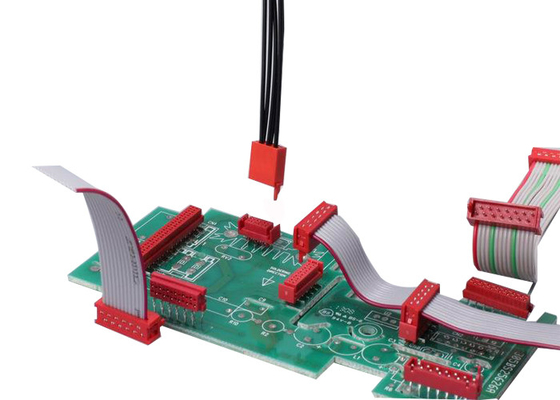

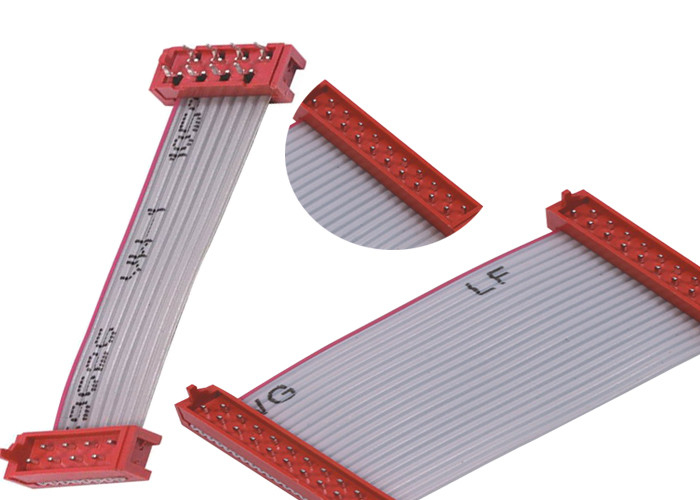

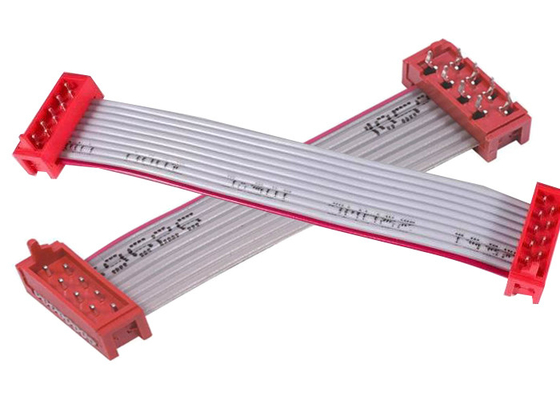

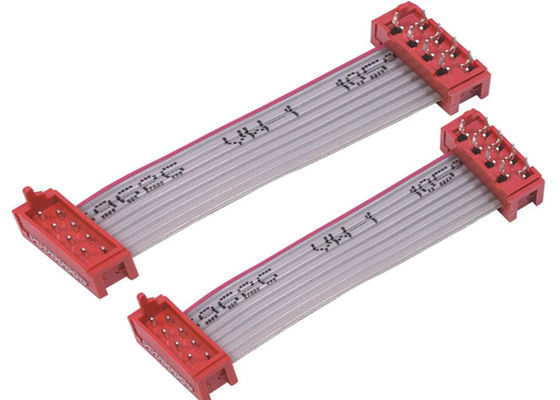

28AWG 150MM IDC Ribbon Cable 1.2 pitch 14pins Gray And Red Flexible Flat Cables
Product description :
A ribbon cable is a flat, thin cable composed of multiple small-grade cables placed parallel to each other. With each core situated side by side, they form a wide-flat cable resembling a piece of ribbon, hence its name. This type of cable is mostly used in electronic systems that require multiple data buses to link internal peripherals, such as disk drives to their respective drive controllers.
The IDC Ribbon cables is small in size and light in weight. The original design of the cable board was used to replace the larger wire harness wire. The IDC Ribbon cables is currently the only processing method to meet the requirements of miniaturization and mobile on the assembly board of the plug-in electronic sub-device. The IDC Ribbon cables is etched copper circuit or printed polymer thick film circuit on the polymer substrate. For devices that are thin, light, and have a compact and complex structure, their design and processing plans range from single-sided conductive circuits to complex multi-layer three-dimensional assembly. The total weight and volume of the gray cable is 70% less than the traditional round wire harness method.
Parameter:
| Product name | Male To Male Flexible Flat Cables |
| Terminal | Cooper (T=0.30) |
| Interface type | AC/DC |
| Maximum outer diameter | 0.12mm |
| Rated current | 1Amp |
| Maximum withstand voltage | AC 500V/1Minute |
| Insulation resistance | 150mΩ Min |
| Contact resistance | 15mΩ Max |
| Insulation material | PVC |
| Contact material | Copper |
| Operation Temperature | -40°C~+105°C |
| Features | Fire resistance / flame retardant |
| Connectors | 1.27-14P |
| Work frequency | Low frequency |
| Shape | Strip |
| PIN | 14 pins |
| Pitch | 1.27mm |
| Wire gauge | 28AWG or customized |
| Wire length | 150mm or Customized |
| Wire Color | Gray or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
FAQ:
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.
Q:Can you meet with UL,ISO etc.?
A:Yes,we have UL,ISO,ROHS,TUV certificates,also can meet with clients special required about other certificates.
Q:How about samples cost?
A:We charge samples based on the products,but most samples are free.
Q:Any requirement about the MOQ?
A:Our MOQ based on products.But most products MOQ are about 100-300pcs.
