Hard work, integrity, win-win cooperation
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI003 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Product Name: | IDC Ribbon Cable Gray Cable | Pitch: | 2.54mm Or Customization |
|---|---|---|---|
| Pin: | 10Pins | Sheath Material: | PVC |
| Color: | Grey,red And Black. | Maximum OD Of Wire: | 1 (mm) |
| Quality: | 100% Testing Before Shipment | Express: | DHL FEDEX UPS TNT |
| Highlight: | PVC Sheath 10 pin IDC cable,2.54mm 10 pin ribbon cable |
||

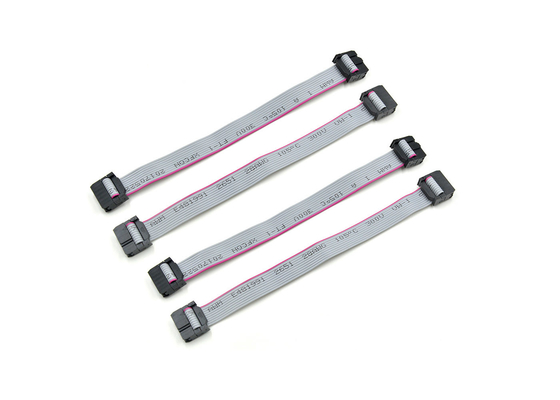

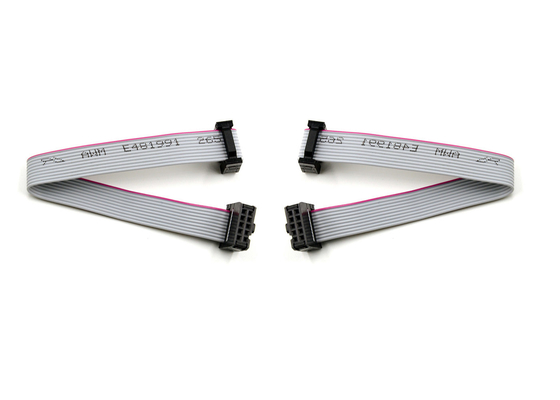

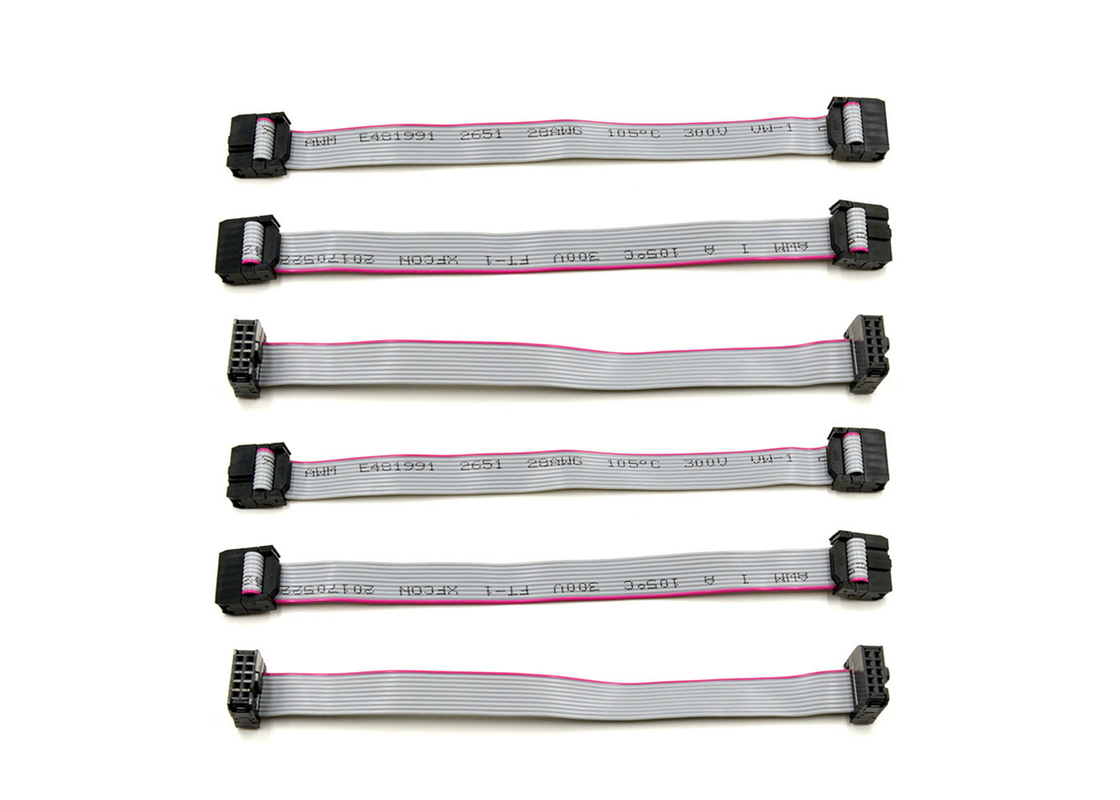

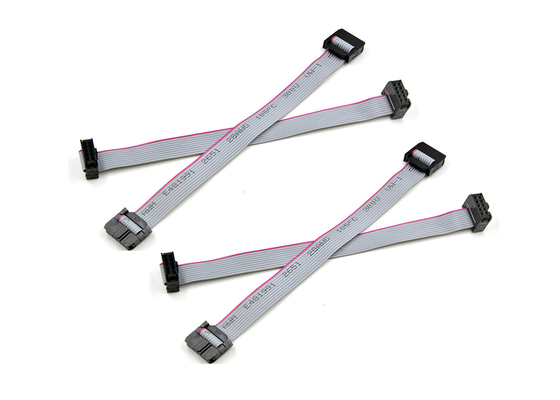

2.54mm IDC Ribbon Cable 10P Finished Gray Cable IDC Red Edge Gray Cable
Product introduction
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-FI003 |
| Application | various connectors and connectors such as computers, instruments, machines, appliances, automobiles, color TVs, air conditioners, LED displays, DVDs, VCDs, etc. |
| Connectors | 10pins or Customized |
| Wire |
28AWG (Another: 32AWG 30AWG 26AWG 24AWG |
| Wire length | 100mm or According to the customers' requirements |
| Wire Color | Colorful or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
2.54IDC finished gray cable-10P
Gray cable spacing: 1.27MM (Another: 0.635MM 1.0MM 2.0MM 2.54MM)
Gray cable specification: 28AWG (Another: 32AWG 30AWG 26AWG 24AWG)
Copper wire structure material: tinned copper wire after plating first
Copper conductor: 7/0.12MM {otherwise: 7/0.08MM 7/0.09MM 7/0.1MM 7/0.16MM 7/0.2MM (7 is 7 strands of copper wire)}
Cable color: gray with red border and printing (otherwise black, yellow and red, need to be customized!)
Packing: conventional 10 strips, packed in bags and boxes. (250ft: 76.5M/roll 500ft: 153M/roll Export: customized according to requirements)
Conductor diameter 0.12±0.005mm
Conductor elongation 18℅↑
Conductor cross-sectional area 0.36mm2
Conductor pitch 10.7mm↓
Insulator thickness minimum 0.10mm average 0.23mm
Wire diameter thickness 0.9±0.05mm
Insulation elongation 100.00℅
Insulator tensile strength 1.066Kg/m㎡↑
Spark test 3.0KV/0.15SPC↑
Withstand voltage 2KV 10mA/
Conductor resistance ≤237 Ohm/RM↓
Insulation resistance ≥100m ohm/RM↑
Capacitance 40PF/M
Impedance 100 ohm
Time delay 4
Working temperature: -40°C~+105°C
Insulation cover: environmental protection PVC 45P (RoHS) 8058 gray
Testing requirements:
Good appearance, plastic parts must not have injection defects, etc.
Metal parts must not have defects such as scratches and deformations
On-off performance meets specified requirements
Widely used in various connectors and connectors such as computers, instruments, machines, appliances, automobiles, color TVs, air conditioners, LED displays, DVDs, VCDs, etc.
Shipping:
1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
