| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F008 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | FFC Shielded Wire | Sheath Material: | Split Cloth |
|---|---|---|---|
| Pitch: | 0.5mm | Production Process: | One Piece |
| Wire Length: | 200mm Or Customized | Temperature: | 80℃/105℃ |
| Aplication: | Electronic Product | Packaging: | Plastic Bag + Carton |
| High Light: | 200mm flat flex cable,FFC shielded flat flex cable |
||

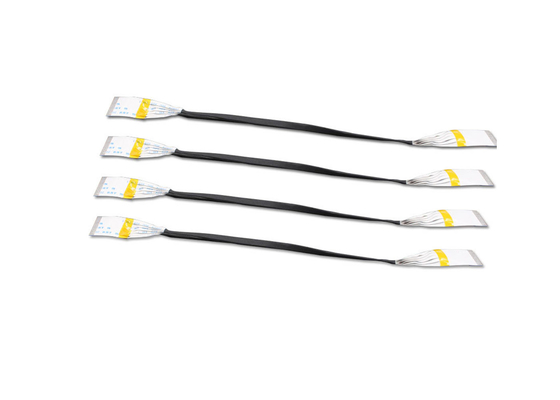

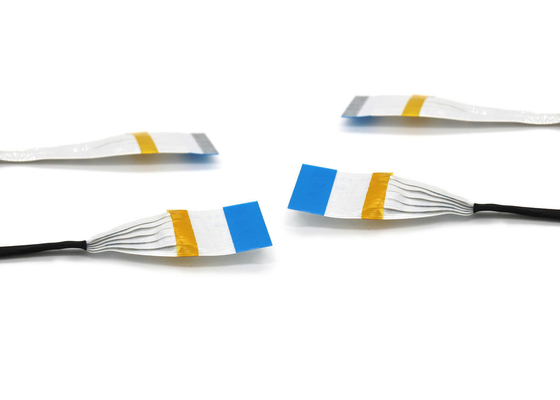

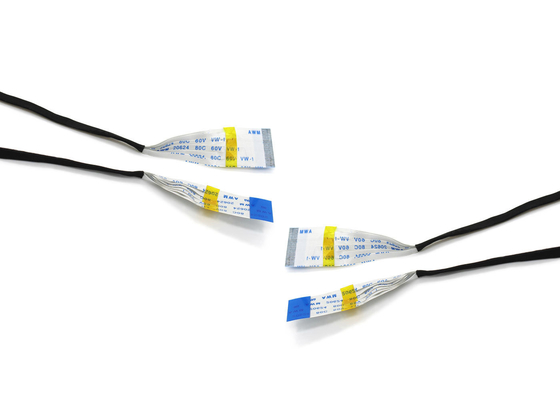

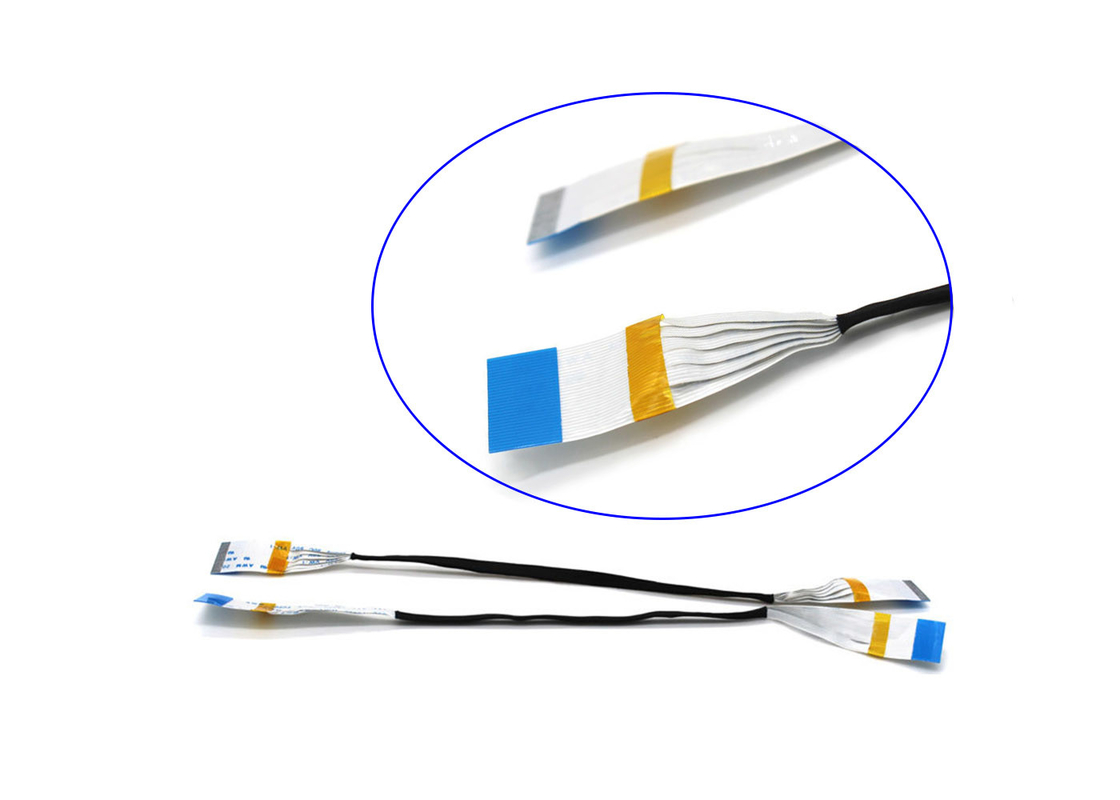

FFC/FPC Flexible Flat Cable 0.5 Pitch Split Stock Cloth Flat Wire Smart Lock Camera Aviation Display Equipment Cable
Product introduction
FFC Flexible Flat Cable (FFC) is a new type of data cable made of PET insulating material and extremely thin tinned flat copper wire, which is pressed through a high-tech automation equipment production line. Thin thickness, small size, simple connection, easy disassembly, easy to solve electromagnetic shielding (EMI) and other advantages
Flexible Flat Cable(FFC) can arbitrarily choose the number and spacing of wires, make the connection more convenient, greatly reduce the volume of electronic products, reduce production costs, and improve production efficiency. It is most suitable for moving parts and motherboards, PCB board to PCB board, miniaturization Used as data transmission cable in electrical equipment.Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other flexible cables with various pitches.
Parameter:
| Pin number | 2-120 |
| Brand Name | SYH |
| Maximum outer diameter of wire | Customized |
| Insulation thickness | Customized |
| Sheath material | Split cloth |
| Pitch | 0.5 mm/1.0mm/1.25mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | 200mm or According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Flexible flat flexible cable:
① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm
② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5, 0.05*0.065, 0.1*0.65, 0.1*0.8;
③ Number of cable screens: 2P-120P;
④ Cable length: 15mm-Nm;
Our Advantages for FFC flexible flat cable :
1. Factory and trade integration,
2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;
6. High Trade Assurance Level
FAQ about FFC flexible flat cable :
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:Do you accept to customize products(OEM)?
A:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.
Q:Are there any disadvantages to choosing flexible flat cable?
A:This type of cable does not allow for sideways flexing, so it may only be used in straight-run applications.
Q:How do I determine which size I need?
A:Sizes are often specified with the number of conductors and the spacing between them. With this type of cable, the conductors may also be referred to as ways. The spacing is known as pitch. The most common pitch for ribbon cabling is 0.050 inches or 1.27 millimeters.
