| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F003 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | FPC FFC Flexible Flat Cable | Type: | FPC |
|---|---|---|---|
| Insulation Thickness: | 1mi/0.5, Others | Insulation Materials: | Mylar, Others |
| Wire Length: | Customized | Mechanical Rigidity: | Flexibility |
| Substrate: | Polyimide, Others | Processing Technology: | Rolled Foil |
| High Light: | 0.5mm FFC Flat Cable,FFC flat flexible cable |
||

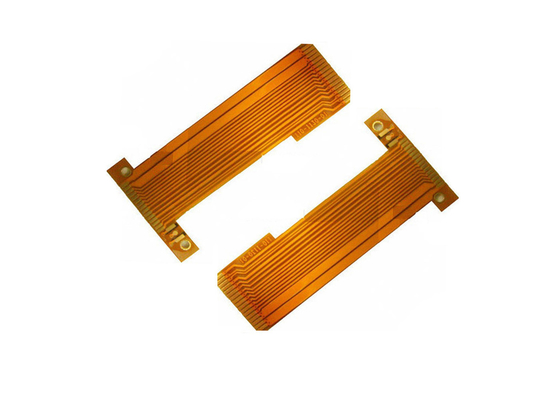

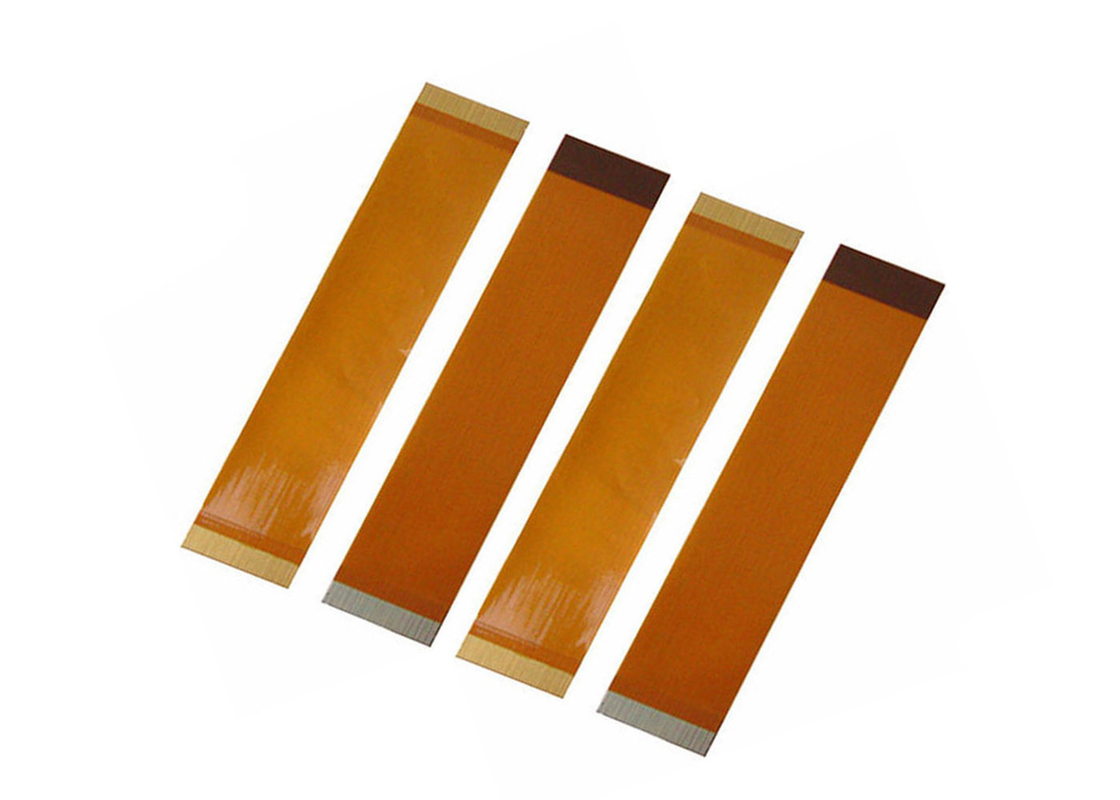

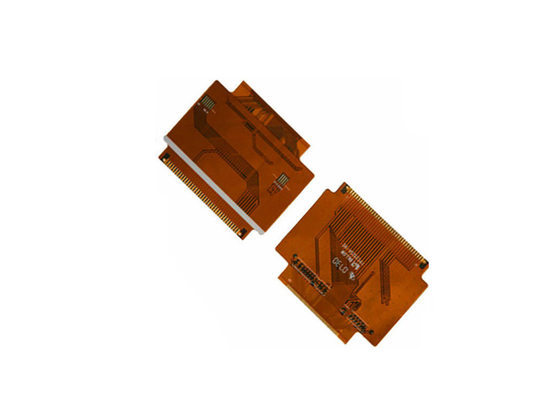

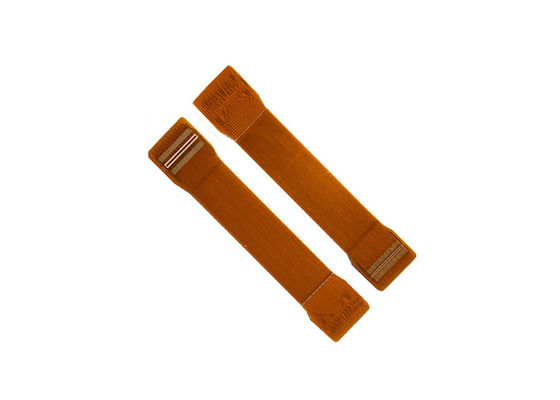

FPC FFC Flexible Flat Cable Ffc Cable 0.5 Mm Flexible Circuit Board Flat Flexible Cables
Product introduction
Flexible circuit board, also known as "flexible board", is a printed circuit made of flexible insulating substrate. Flexible circuits provide excellent electrical performance, can meet the design needs of smaller and higher density installations, and also help reduce assembly processes and enhance reliability. Flexible circuit boards are the only solution to meet the miniaturization and mobility requirements of electronic products. It can be freely bent, wound and folded, can withstand millions of times of dynamic bending without damaging the wires, can be arbitrarily arranged according to the space layout requirements, and can be arbitrarily moved and stretched in the three-dimensional space, so as to achieve the integration of component assembly and wire connection The flexible circuit board can greatly reduce the volume and weight of electronic products, and is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability.
Parameter:
| Pin number | 2-120 |
| Brand Name | SYH |
| Maximum outer diameter of wire | 30mm |
| Insulation thickness | 1mi/0.5, others |
|
Insulation Materials
|
Mylar, others
|
| Pitch | 0.5-2.54mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Flexible flat flexible cable:
① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm
② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5, 0.05*0.065, 0.1*0.65, 0.1*0.8;
③ Number of cable screens: 2P-120P;
④ Cable length: 15mm-Nm;
Two types of film are commonly used:
① Rated voltage and temperature 60V 80℃ AWM 20624 80C 60V VW-1
② Rated voltage and temperature 60V 105℃ AWM 20624 105C 60V VW-1
Common models are as follows:
Type A:The two ends are connected and the reinforcing plate is pasted on the insulating tape;
Type B :The reinforcement board is pasted directly on the insulating adhesive paper;
Type C :The reinforcing plates at both ends are directly pasted on the conductor;
Type D :The reinforcing plates at both ends are pasted directly on the conductor;
Type E:One end of the reinforcement board is attached to the insulating adhesive paper, and the other end is directly soldered;
Type F :The reinforcing plates at both ends are directly attached to the insulating adhesive paper, and the internal half is peeled off;
Type G :Direct soldering at both ends.
