Hard work, integrity, win-win cooperation
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-H004 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Frequency Range: | 2400-2500/5G（MHz） | Connector: | SMA Male |
|---|---|---|---|
| Gain: | 2-2.5Dbi | VSWR: | ≤ 1.5 |
| Antenna Size: | 108mm | Impedance: | 50Ω |
| Polarization: | Vertical | Color: | Black White Or Customized |
| Highlight: | 5.8G High Gain Dual Band Wifi Antenna,108mm high gain wireless antenna |
||

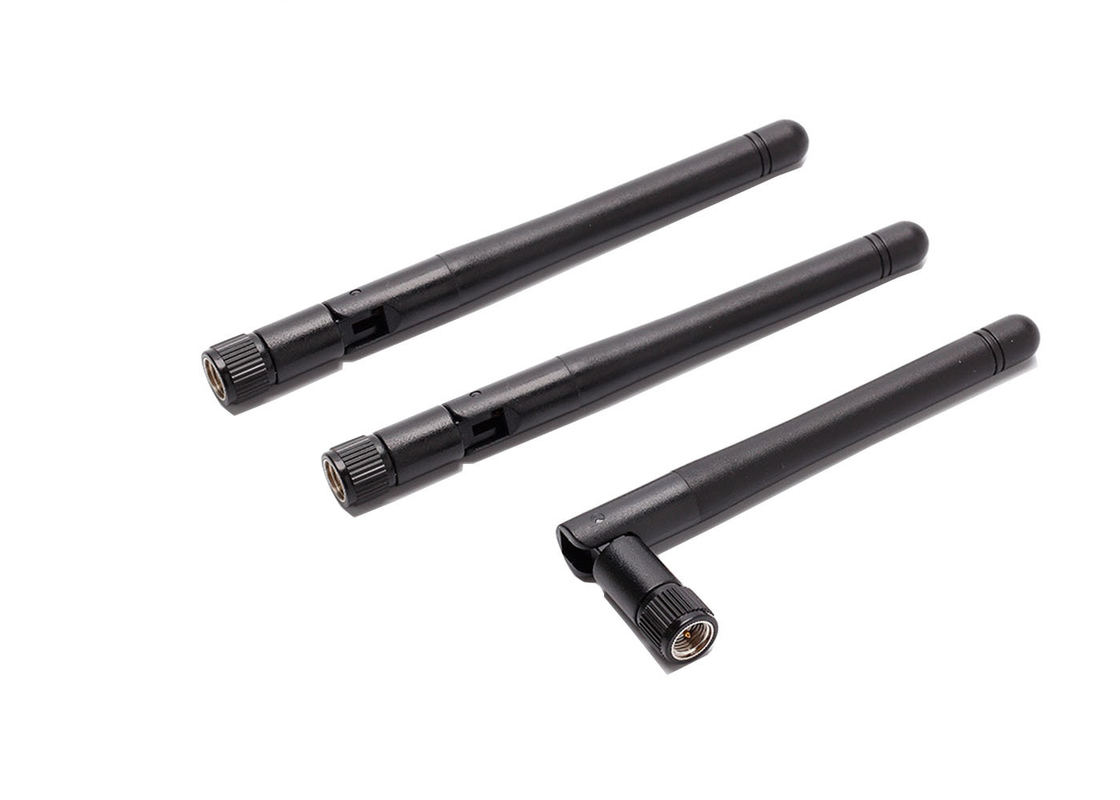

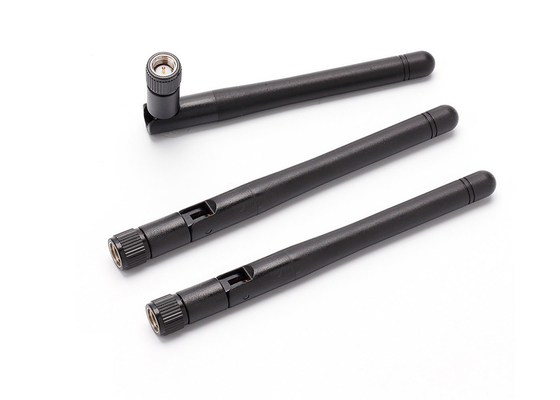

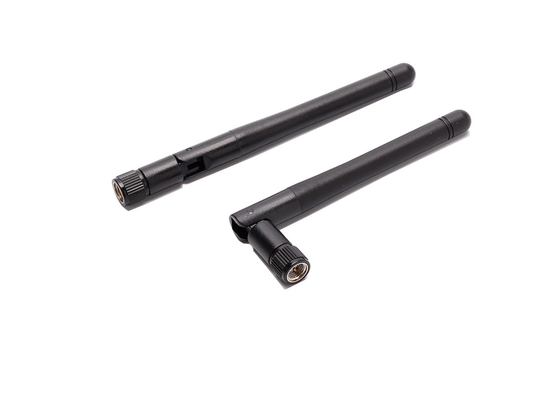

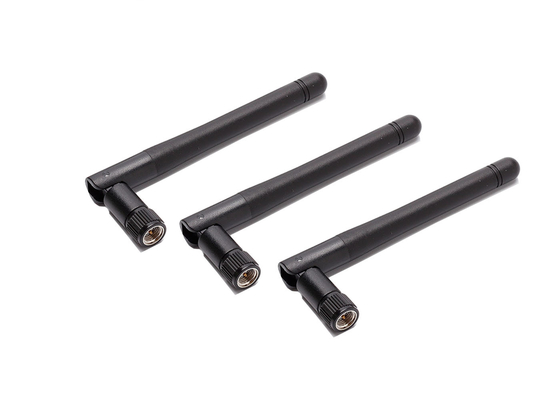

2.4G 5.8G Dual Band Wifi Antenna Image Transmission Wireless Data Recorder Antenna High Gain Rubber Duck Antennaa
Product introduction
Commonly used antenna types:
(1) External glue stick antenna: good performance, no need to debug, easy to replace, high gain, suitable for various terminal equipment.
(2) SMT patch type: The commonly used ceramic antenna has a small footprint, high integration, and is easy to replace. It is suitable for products with small space requirements, but this type of antenna is slightly more expensive and has a smaller bandwidth.
(3) On-board PCB antenna: It is etched by PCB, with low cost, but with limited performance and good adjustability. It can be used in large quantities for Bluetooth and WiFi wireless communication modules.
(4) FPC antenna: connected by feeder, it is free to install and has high gain. It can usually be pasted on the non-metal casing of the machine by using adhesive.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-H004 |
| Frequency | 2400-2500/5G(MHz) |
| Connector | SMA |
| V.S.W.R | ≤1.5 |
| Gain | 2-2.5dbi |
| Antenna length | 108mm |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Frequency:VHF-UHF Antenna , 315-430-470mhz Antenna , 868-915mhz Antenna , 2G GSM/CDMA(890-900-1800-1900Mhz) Antenna , 3G (850-900-1800-1900-2100mhz) Antenna , 2.4G Bluetooth /WIFI network card (2400-2500mhz) , GPS Antenna(1575.42mhz), GPS+BD(1575+1561), GPS+GSM+4G Antenan , 4G(700-960/1700-2680mhz) , NB(824-960mhz) Antenna , 5G Antenna(2150-5850mhz) , 2.4G+5G Dual Band
Material: Rubber / plastic , car / sucker , glass antenna , positioning / navigation / nautical , built-in , antenna cable , antenna connector , wire / cable , custom antenna .
Applications:Security monitoring, wireless router, mobile phone antenna, IoT smart, smart home, car mobile antenna, network HD camera, advertising all-in-one, shared vending machine, TV antenna, radio antenna, 5G image transmission, drone antenna
☀ Our wifi antennas can be made in different gains and frequency, if you need, we can accept customized.
☀ Our wifi antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.
☀ We can also produce GSM antennas, indoor or out door panel antennas, sucker antenna and so on.
☀ If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product, please contact our sales deparment and get more details.
☀ If you require a special antenna not found here, you can create your own antenna by calling our sales department.
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
Contact Person: Mrs. Eda Han
Tel: +86-18234096310
