| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-M016 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Voltage: | 300V | Rated Current: | 5A |
|---|---|---|---|
| Wire Length: | 200mm Or Customized | Wire Gauge: | Customized |
| Color: | Customized | PIN: | 8pins |
| High Light: | 2.0mm 8 Pin Wiring Harness,300V Medical Transfer Wire |
||

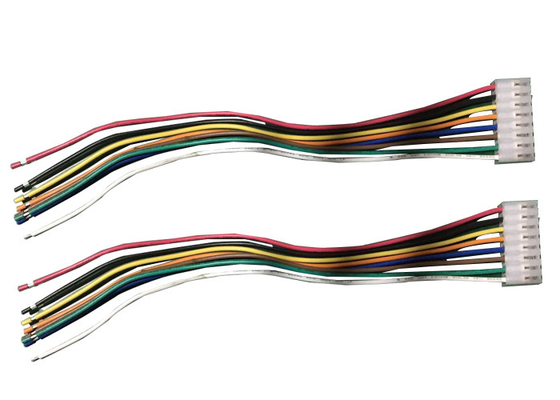

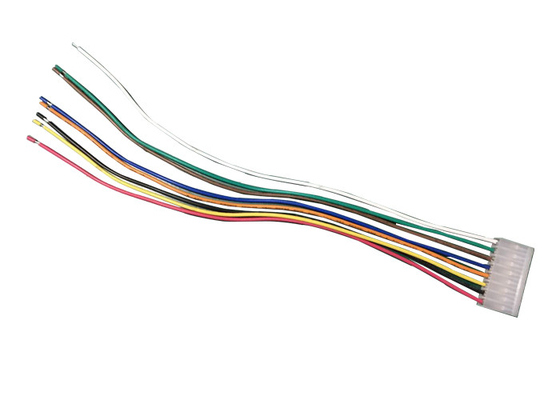

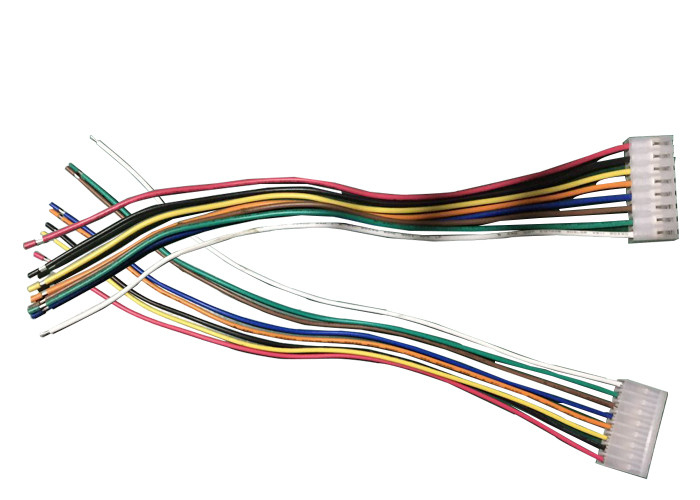

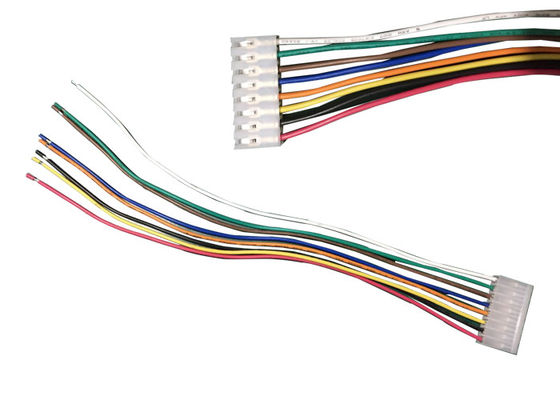

300V 200MM Medical Wiring Harness 2.0 Pitch 8pins Medical Transfer Wire
Product introduction
Sanyouhe manufactures custom flat panel display cables and cable harness assemblies for a wide range of medical devices. Because medical equipment can mean the difference between life and death, these devices must be built to the highest standards of quality. Our products meet or exceed the quality standards of the medical industry.
We understand the client’s demands and have infrastructural support to meet them adequately. We are supported with tools and machines which give us precise manufactured products which meet the demands of clients. We manufacture quality products which ensure hassle free experience for the end user. In our manufacturing we make use of premium class of raw material which eases the path of attaining quality.
Parameters:
| Pin | 8 pins or customized |
| Voltage | 300V |
| Rated current | 5.0A |
| Work frequency | Low frequency |
| Feature | Flame retardant |
| MOQ | Small quantity can be accepted |
| Pitch | 2.0mm or customized |
| Lead time | 3-15 days |
| Certificate | RoHS,CE,UL,TUV,ISO |
| Test | Professional breakover and pulling force test before goods sent out |
| Interface Type | AC/DC |
| Shape | Strip |
| Wire gauge | 16-24AWG or customized |
|
Color
|
Black or customized |
| Wire length | 200mm or customized |
| Customized | Yes |
| Feature | Flame retardant,can pass the UL758,VW-A and CSA RT1 vertical burning test. |
| Insulation material | PVC / TPE / silicone or customized |
| Conductor material |
Pure copper tin plating
|
Conductor Sizes
We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.
Conductor Colors
Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.
Stranding Sizes
Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.
Conductor Insulation
The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.
Materials
Polyvinylchloride (PVC)
Polyurethane (PU)
Thermoplastic elastomer (TPE)
Thermoplastic polyester elastomer (TPEE)
Thermoplastic vulcanizate (TPV)
Polytetrafluoroethylene (Teflon®)
Silicone
The hardness or softness of each material can be varied.
