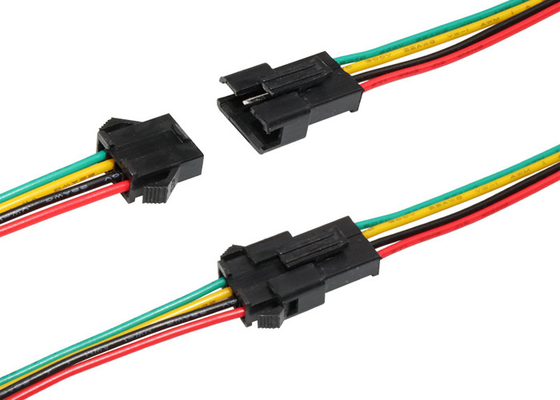

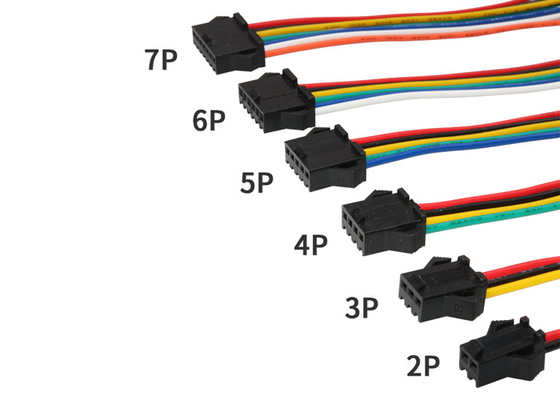

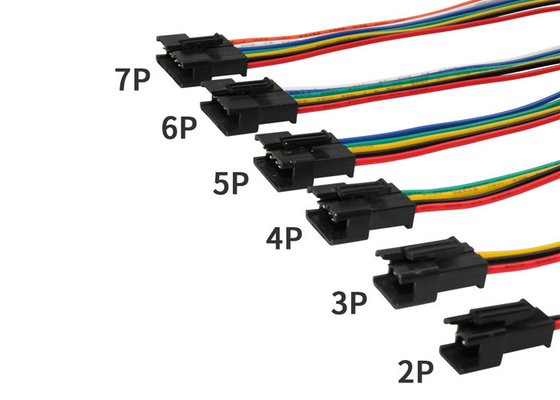

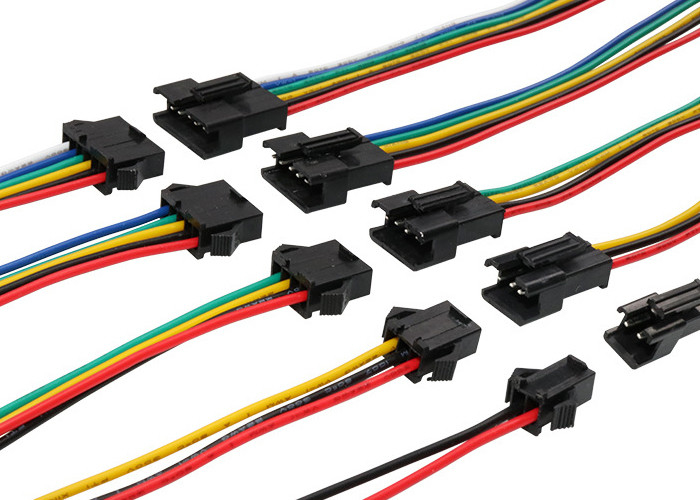

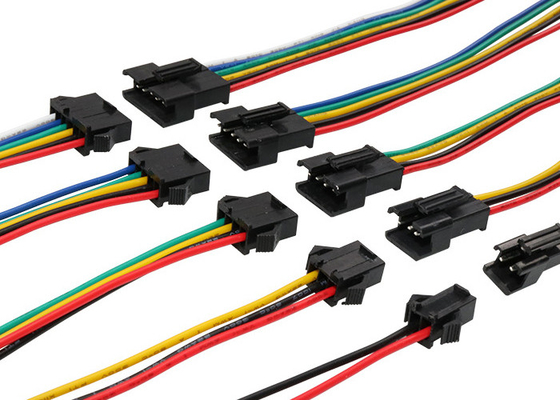

Sm2.54mm 2p Cable Wiring Harness Male And Female Head

Name: Sm2.54mm 2p Cable Wiring Harness Male And Female Head
Brand: Sanyouhe
SKU: SYH-CW101
Availability: InStock
ISBN: 13260614

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Sanyouhe
Certification:	UL、IATF、ISO
Model Number:	SYH-CW101

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	100/200/300/500pcs per bag , then outside carton
Delivery Time:	3-15 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000 Piece/Pieces per week

Contact Now

Detailed Product Description

Product Name:	SM2.54 Cable Wiring Harness	Connectors:	SM2.54 Male Or Female Connectors
Wire Gauge:	1007 22AWG Or Customized	Wire Length:	160mm Or Customized
Core Material:	Tinned Copper Wire	Jacket:	PVC
Wire Color:	Red Black Or Customized	Service:	OED ODM Accepted
High Light:	2p cable wiring harness , sm2.54mm cable wiring harness , 160mm cable wiring harness

SM2.54mm2P Black Plug Air Docking Plug Terminal Line Pin Connection Line Butt Male And Female Head Harness

About Connectors:

Connectors can be seen everywhere in our lives. For example, our commonly used data cables and computer cables are also one of the connectors. There are male and female connectors for matching connectors, so how to distinguish?

1. One side of the plug (protruding connector) is male, and the other side of the jack (recessed connector) is female.

2. To distinguish from the appearance and shape, the pointed part is generally a male terminal, and the head with a round hole is generally a female terminal.

3. It can be distinguished by size: generally the larger head is female, and the smaller head is male.

Benefits of using connectors

1. Improve the production process: The connector simplifies the assembly process of electronic products. Also simplifies the mass production process;

2. Easy to repair: If an electronic component fails, the failed component can be quickly replaced when the connector is installed;

3. Easy to upgrade: With the advancement of technology, components can be updated when connectors are installed, and new and more complete components can be used to replace the old ones;

4. Improve design flexibility: The use of connectors enables engineers to have greater flexibility when designing and integrating new products and when composing systems with components.

Adantage:

It can produce small orders with multiple batches, small batches, and individual requirements;

It can also produce small batches, large batches, and large standardized orders.

The company has rich production experience and technical capabilities, and has excellent

Automatic production equipment and testing instruments

Equipped with advanced production technology, can design according to customers' samples and drawings

Produce a complete set of services

Products have passed UL certification

100% electrical test and full inspection before shipment

Passed ISO9001:2008 quality management system certification

Passed ISO14001:2004 environmental management system certification

ROHS, REACH, NP green factory

7*24 hours service

Parameters:

Product Name	SM2.54 Cable Wire Harness
Brand Name	SYH
Model Number	SYH-CW101
Application	Used in Automobile
Connectors	SM2.54 Male or Female
Wire	1007 22AWG or Customized
Wire length	160mm or According to the customers' requirements
Wire Color	Red Black or Customized
Certification	ISO9001, T/S16949, Rohs
MOQ	Small quantity can be accepted
Sample	Sample can be provided for evaluating
Sevice	OED ODM accepted
Delivery Time	3-15 days upon receipt of payment
Packaging	00/200/300/500pcs per bag , then outside carton
Test	Professional breakover and pulling force test before goods sent out

Sm2.54mm 2p Cable Wiring Harness Male And Female Head 0

FAQ

Q: When will you start to help design?

A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order.

Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q: What is your payment term?

A: T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
