| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW158 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Wire Color: | Customized | Pins: | 3pins Or Customized |
|---|---|---|---|
| Feature: | Fire Retardant/flame Retardant | Shape: | Rectangle |
| Contact Material: | Tinned Copper | Wire Length: | 50mm Or Customized |
| High Light: | 3 Pins Wire Harness Assembly,50mm harness cable assembly |
||

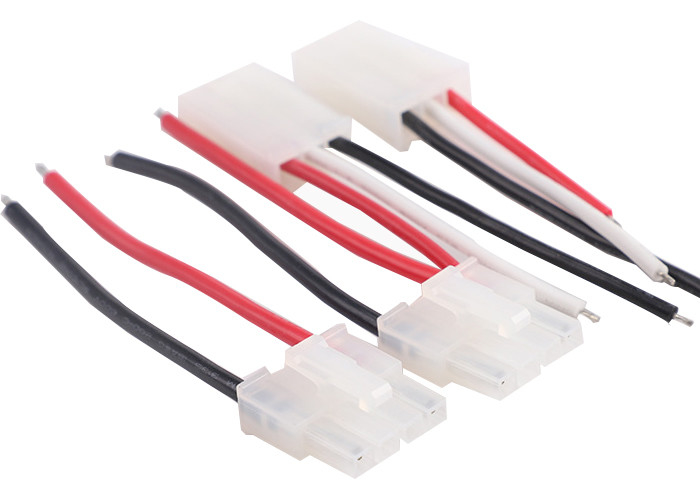

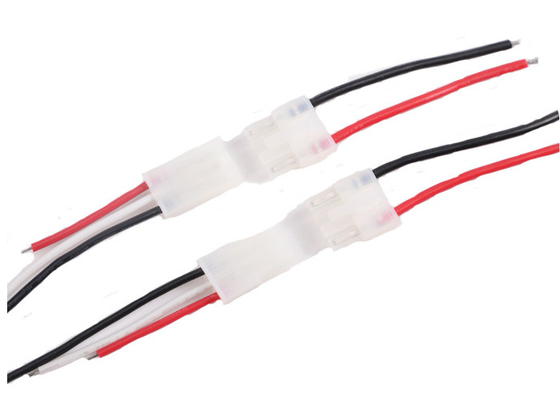

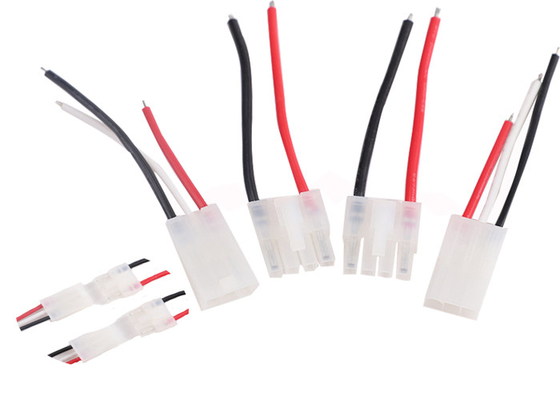

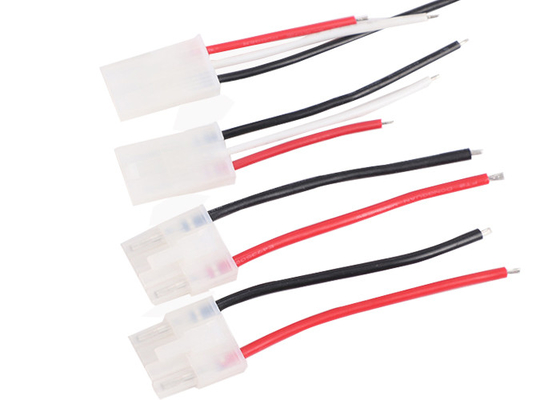

PVC Harness Assembly 3pins Cooper 50mm Female And Male Terminal Connection Tinned Wires
Product information:
A Wire Harness is often confused with a cable assembly; the main difference between the two is that a cable assembly usually has just two ends while a wire harness has multiple branches/ends running off in many different directions with multiple terminations on each branch.
The typical wire harnesses that SYH supplies include dozens of wires and sometimes hundreds of different components and terminations. Our engineering staff is well versed in the design and construction of wire harnesses and is available to assist in the development of the most efficient harness to meet your demands.
Parameter:
| Wire length | 50mm or customized |
| Wire gauge | 22AWG or customized |
| Temperature | 105℃ |
| Wire Color | Customized |
| Pins | 3pins or customized |
| Connectors | Female and male |
| Feature | Fire retardant/flame retardant |
| Shape | Rectangle |
| Test | Professional breakover and pulling force test before goods sent out |
| Application | Automobile |
| Contact material | Tinned copper |
| Tinned end | 1mm or customized |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Work frequency | Low frequency |
| Insulation | PVC |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
| Interface type | AC/DC |
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials. How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
Our Advantages:
1.Factory and trade integration,
2.Competitive price;
3.Timely delivery;
4.Technical support;
5.Samples for free;
6.High Trade Assurance Level
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
