| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-CW009 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 Piece/Pieces per week |
| Cable: | RG316 Or Customized | Wire Length: | 150mm Or Customized |
|---|---|---|---|
| Product Name: | RF Cable Custom Wiring Harness | Connector: | TNC Female To MCX Male Connector |
| Wire Color: | Brown Or Customized | Application: | Communication |
| Quality: | 100% Testing Before Shipment | Service: | OED ODM Accepted |
| High Light: | RG316 coaxial cable,150mm Custom Wiring Harness |
||

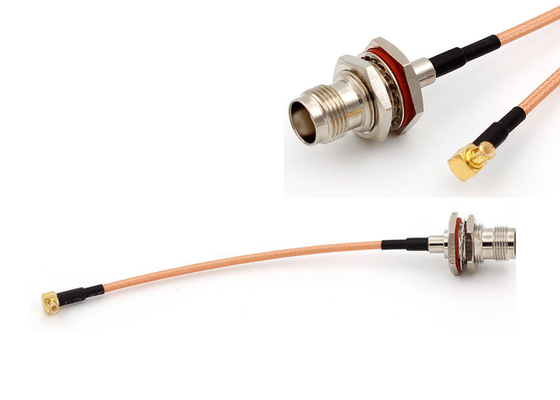

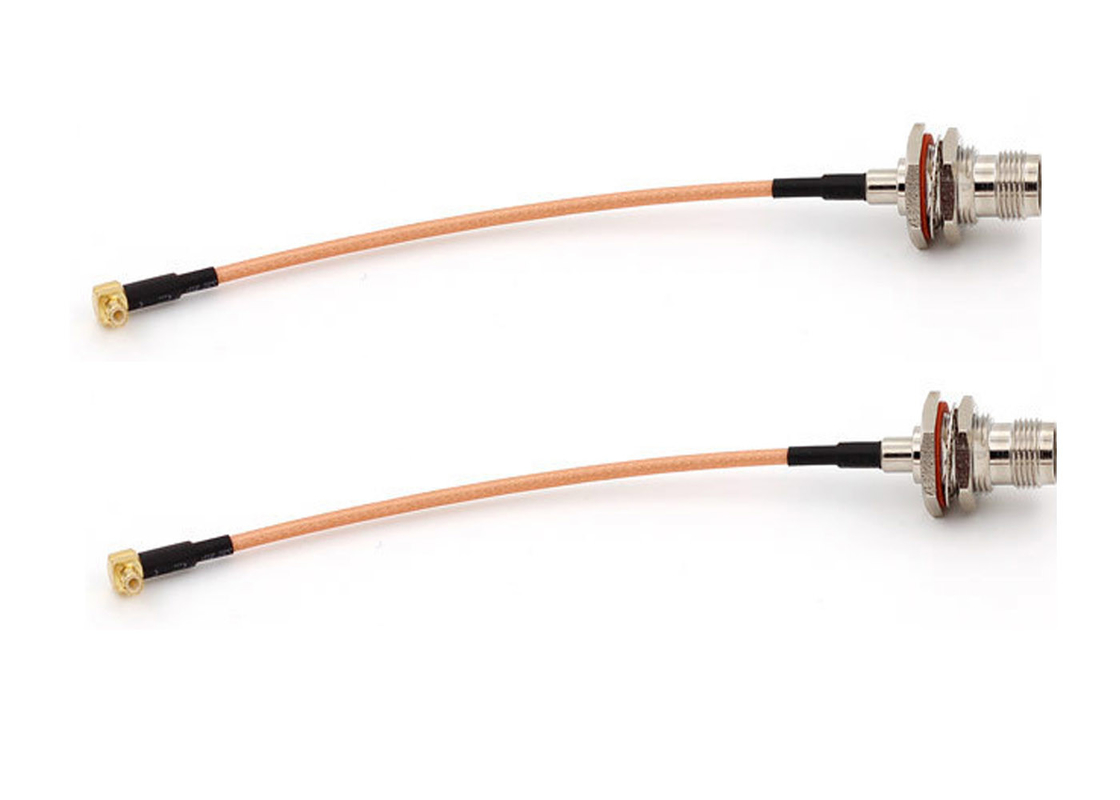

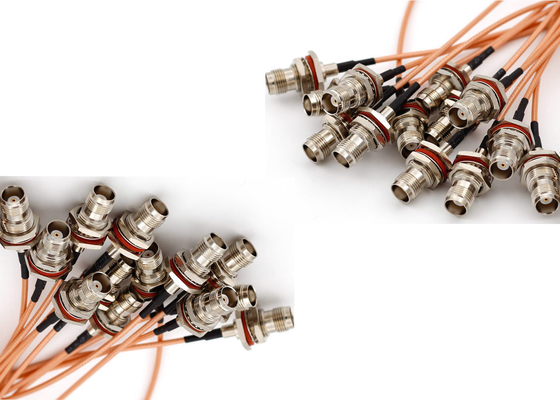

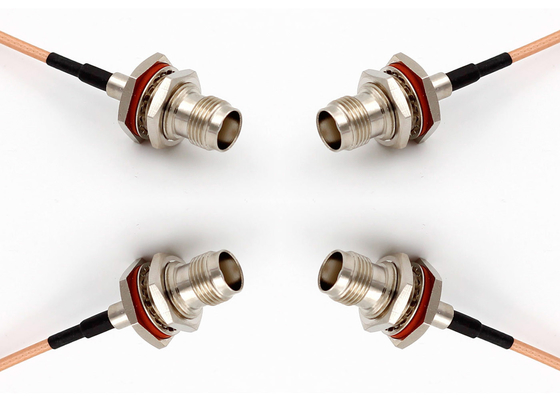

TNC Waterproof Female To MCX Curved Male Connector For Driving Test Internet Of Things Agricultural Machinery
Features:
RG316 coaxial cable has excellent transmission characteristics and can operate stably in 3G communication networks; it has strong anti-electromagnetic interference and bending resistance, good flexibility, and is suitable for applications in folding and rotating electronic products; has good heat resistance , Flame resistance, atmospheric resistance, can work in the environment of -55 ℃ -250 ℃.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-CW009 |
| Application | Automotive,Electrical,Industry,Home application |
| Connectors | TNC Female to MCX Male connector |
| Wire | RG316 |
| Wire length | 150mm or According to the customers' requirements |
| Wire Color | Brown or According to the customers' requirements |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 100/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Main application range:
It is used for antenna wires of electronic devices such as smart phones, notebook computers, digital cameras, video cameras, GPS locators, wireless routers and so on. The internal data transmission of electronic equipment such as LCD TVs, precision medical equipment, etc. At the same time, with good environmental resistance and reliability, it can be used in aviation, intelligent robots, military and other special fields, and the application fields are extremely wide.
What is the difference between RG179 and RG316 coaxial cable?
The material is the same, the structure size is different, and the electrical performance parameters are also different:
The characteristic impedance of RG179 is 75Ω,
1. Inner conductor: silver-plated copper clad steel diameter 7／0.102mm
2. Insulator polytetrafluoroethylene (PTFE) diameter 1.60mm
3. Shield 95% silver-plated copper wire braided diameter 2.04mm
4. Sheath FEP diameter 2.54mm
The characteristic impedance of RG316 is 50Ω,
1. Inner conductor: silver-plated copper-clad steel diameter 7／0.17mm
2. Insulator polytetrafluoroethylene (PTFE) diameter 1.52mm
3. Shield 95% silver-plated copper wire braided diameter 1.98mm
4. Sheath FEP diameter 2.49mm
There are nearly 30 series and 2000 varieties of RF coaxial connectors produced by the company. The main products are internationally-used SMA, SMB, SMC, MCX, MMCX, SSMA, SSMB, SSMC, BNC, TNC, N-type series products. , In line with IEC169, MIL-C-39012, DIN technical standards. RF connectors such as L6, Q6, L8, L10, L12, L16, SL16, L9, Q9, TAC, FL10 and other types of adapters, impedance converters, attenuators, fixed loads that comply with GB and SJ standards Feeder connectors, etc. And 433MHZ, 2.4G, 4G, 5.8G, GSM / GPRS antenna, WIFI, WIMAX antenna, wireless network equipment, wireless router, instrumentation, security protection, computer / peripheral equipment, etc.
