CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-FI017 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | Dupont Terminal Flexible Flat Cables | Terminal: | Cooper |
|---|---|---|---|
| Outer Diameter: | 1.43mm | Insulation Thickness: | 0.41mm |
| Resistance: | 6Ω | Insulation Material: | PVC |
| Rated Temperature: | 80℃ | Connectors: | 1.27-16P |
| High Light: | 1.27mm Flat Flex Ribbon Cable,0.41mm Insulation 16 pin IDC cable |
||

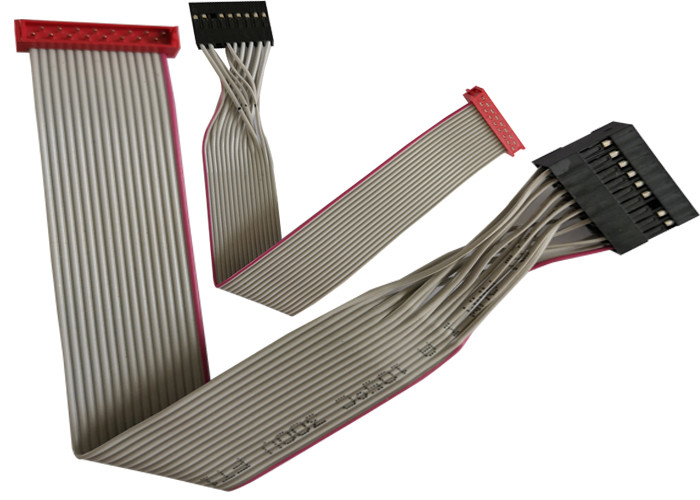

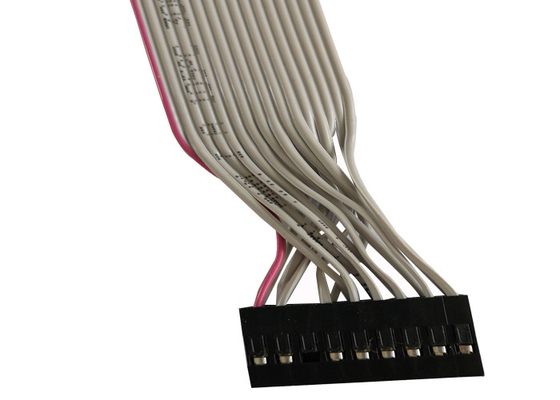

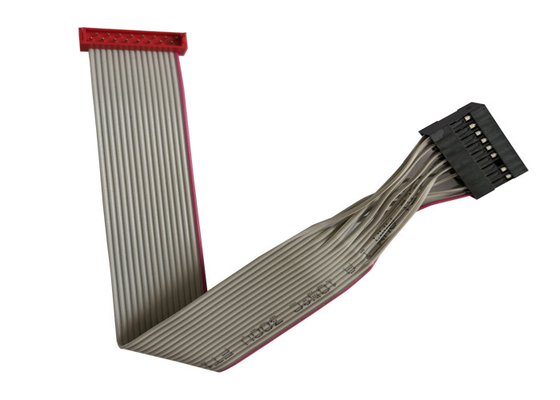

1.27pitch IDC Ribbon Cable Waterproof 16pins PVC Dupont Terminal Flexible Flat Cables
Product description :
The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials.
Parameter:
| Product name | Dupont Terminal Flexible Flat Cables |
| Terminal | Cooper |
| Outer diameter | 1.43mm |
| Insulation thickness | 0.41mm |
| Resistance | 6Ω |
| Insulation material | PVC |
| Contact material | PA66 |
| Rated Temperature | 80℃ |
| Features | Fire resistance / flame retardant |
| Connectors | 1.27-16P |
| Work frequency | Low frequency |
| Shape | Strip |
| PIN | 16 pins |
| Pitch | 1.27mm |
| Wire gauge | 28AWG or customized |
| Wire length | 200mm or Customized |
| Wire Color | Red edge gray row or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.
The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.
1. Material selection of terminal
The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.
Second, the choice of insulating sheath
The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.
Third, the choice of wire harness
According to the different use environment, choose the corresponding wire material.
Fourth, the choice of dressing materials
Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.
Our Advantages:
1. Factory and trade integration,
2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;
6. High Trade Assurance Level
Our Services:
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
