| Place of Origin: | JIANGSU ,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W003 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Features: | Waterproof | IP Code: | IP67 |
|---|---|---|---|
| Length: | 200 (mm) Or Customized | Color: | Black Or Customized |
| Pin: | 3、4、5、6、8、12、17... Or Customized | Wire Gauge: | 24AWG |
| Interface Type: | AC/DC | Core Material: | Bare Copper Wire |
| High Light: | 24 AWG outdoor extension cable,200mm Waterproof Cable Wire |
||

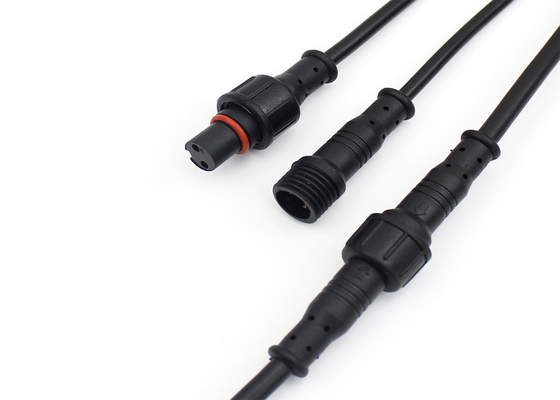

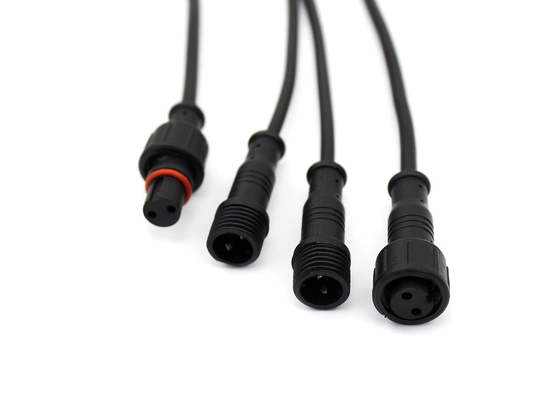

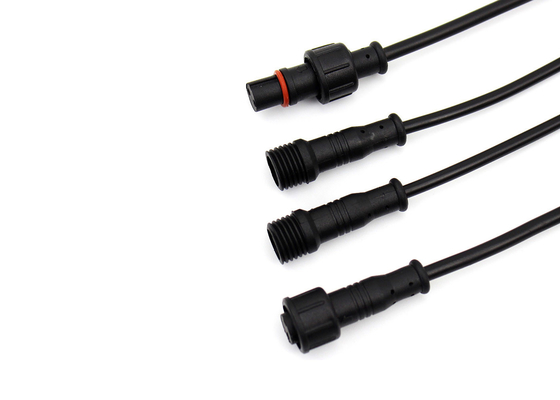

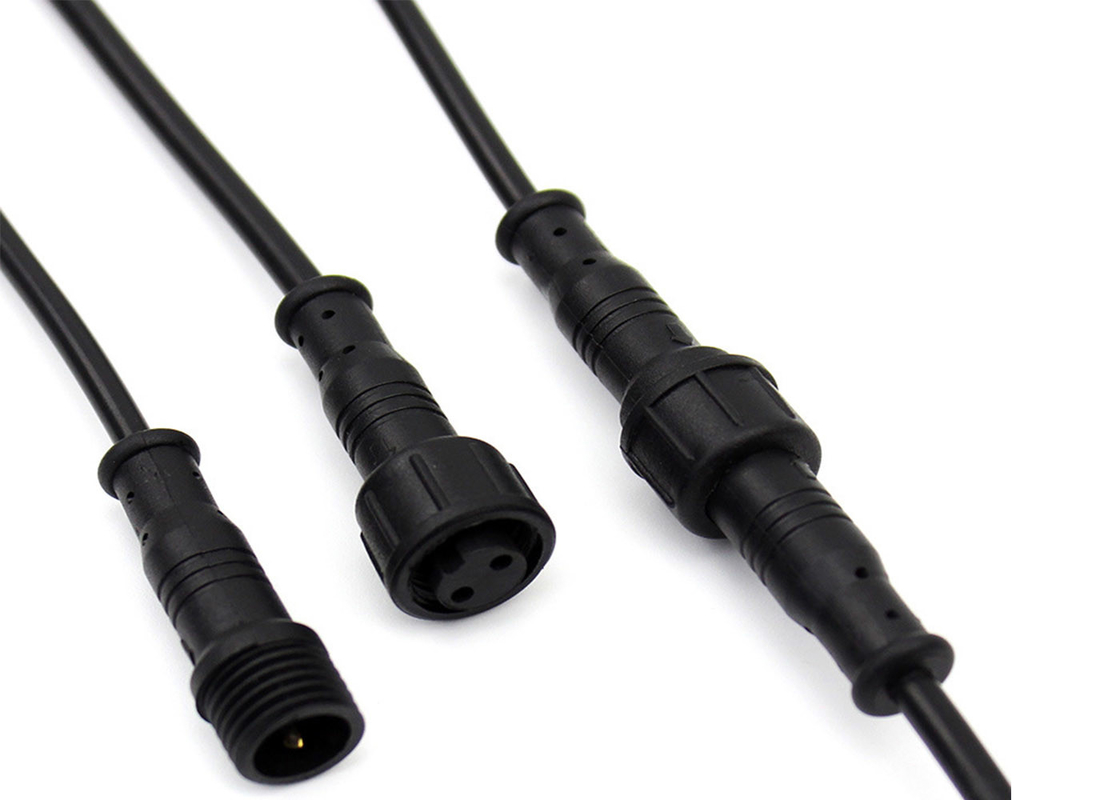

Waterproof Power Cable Male And Female Butt Plug Cable Car Plug LED Outdoor Extension Cable
Product introduction
Parameter:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-W003 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire Materials |
Wires can be UL certified PA66 for connectors; copper or stainless steel for terminals |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | M12 or Customized |
| Length | 1000mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
| Pins number |
Reted current |
Reted voltage |
Contact resistance |
Insulation resistance |
IP-Code | Cable Specifications |
Cable range |
| 2 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 3 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 4 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.75mm² | 0-7.5mm |
| 5 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| 6 | 4A | 60V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| Operating temperature | PA66:-40～105℃ | ||||||
| Connection mode | Threaded | ||||||
| Operation frequency | Low frequency | ||||||
| Interface Type | AC/DC | ||||||
| Contact material | Gold-plated copper | ||||||
Before ordering customized products, please specify the product specifications:
1. Color (black, white, transparent or other colors)
2. Wire gauge (0.3, 0.5, 1.0, 1.5...2.5 square)
3. Number of cores (single core or multi-core wire)
4. Wire material (such as PVC, TPE, rubber, silicone, nylon)
5. End-of-line treatment (stripping length, whether tinned, tinned length)
6. Length or total length (conventional length is 200mm for each male and busbar)
7. Other special requirements (labeling at the end of the line, individual packaging, packaging requirements, etc.)
Remarks
1. Wire requirements: CCC, VDE, UL and other standard certified wires can be used according to customer requirements
2. Connector requirements: non-standard joint products can be developed, designed and manufactured according to customer requirements
3. Special wire requirements: can be provided by customers themselves, processed and produced by our enterprise
4. Customers may provide sample drawings, we will strictly follow the customer's requirements for production and processing customization
5. After the customer places the order, we will arrange the production immediately after the deposit is received.
Our advantage
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
8. High performance
9. After-sales guarantee
