| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W012 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Wire Length: | 500mm Or Customized | Interface Type: | AC/DC |
|---|---|---|---|
| Craftsmanship: | Stamping/welding/injection | Feature: | Waterproof |
| Work Frequency: | Low Frequency | IP Code: | IP65-IP68 |
| High Light: | 500mm Waterproof Cable Wire,2 pins waterproof electric cable |
||

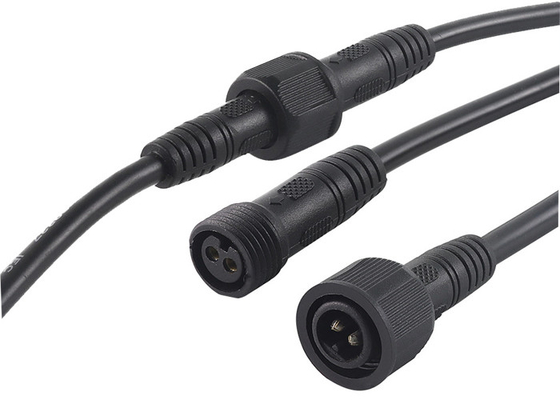

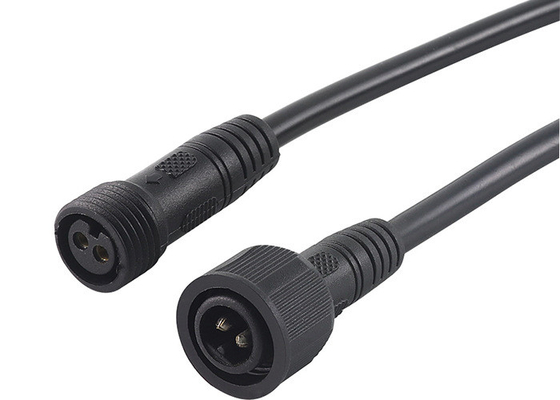

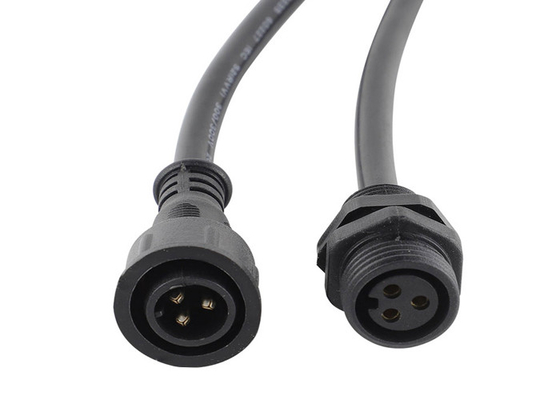

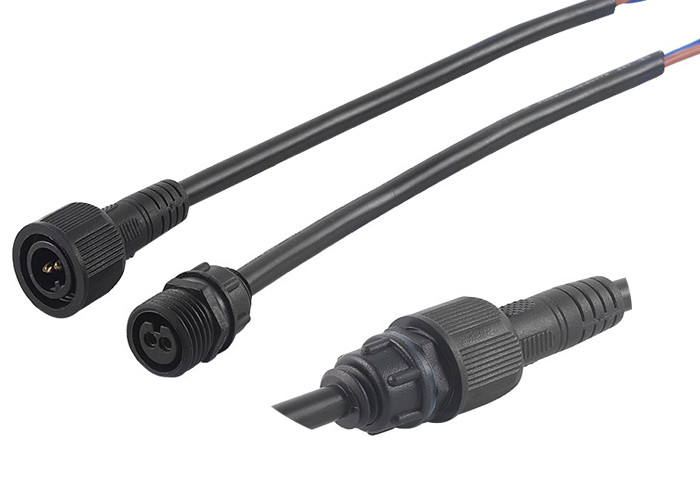

IP65-IP68 Waterproof Cable Wire black 2pins 50A LED Terminal Wire Connector Panel Waterproof Connection Wire Harness
Product information:
The waterproof method of cable is generally divided into two kinds of longitudinal water blocking and radial diameter water. Longitudinal water-blocking commonly used are water-blocking yarn, water-blocking powder and water-blocking tape, their water-blocking mechanism is that these materials contain a water-swellable material, when the water is from the cable end or from the sheath After entering the defect, this material will quickly expand with water to prevent the water from further spreading along the longitudinal direction of the cable, thus achieving the purpose of longitudinal waterproofing of the cable. Radial water blocking is mainly achieved by extruding HDPE non-metallic sheath or hot pressing, welding, cold drawing metal sheath.
For XLPE insulated cables above 110kV, metal sheath is mainly used to make the cables meet the waterproof requirements. The characteristic of the metal sheath is that it is completely impermeable, so the cable with the metal sheath has very good radial water resistance. The main types of metal sheath are: hot-pressed aluminum sleeve, hot-pressed lead sleeve, welded wrinkled aluminum sleeve, welded wrinkled steel sleeve, cold drawn metal sleeve, etc.
Parameter:
| Wire length | 500mm or customized |
| Interface type | AC/DC |
| Shape | Round/Flat |
| Craftsmanship | Stamping/welding/injection |
| Feature | Waterproof |
| Contact material | Pure phosphor copper |
| Connector material | PVC/PBT/PA66/PC+ABS |
| Pin | 2-12pins can be customized |
| Breakdown voltage | ≥1500V |
| Wire material | PVC, rubber, silicone, PE, etc. |
| Work frequency | Low frequency |
| IP code | IP65-IP68 |
| Operating temperature | -40~105°C |
| Rated current | 1-50A |
| Rated voltage | DC 0-24V(AC 110V,500V) |
| Wire gauge | Customized |
| Wire Color | Customized |
| Test | Professional breakover and pulling force test before goods sent out |
| Contact material | Copper plating |
| Cable materials | Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper |
| Work frequency | Low frequency |
| Insulation | PVC |
| Connector Type | Original OEM or Replacement |
| Service | OEM and ODM products are acceptable |
| Order Quantity | Small quantity can be accepted,like 100pcs |
| Samples | Samples confirmed first before mass production |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Lead time | Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks |
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
