CONNECTING US TO BUILD OUR FUTURE
 |
| Place of Origin: | JIANGSU ,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-W002 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Features: | Waterproof | IP Code: | IP67 |
|---|---|---|---|
| Length: | 1000 (mm) Or Customized | Color: | Black Or Customized |
| Pin: | 3、4、5、6、8、12、17... Or Customized | Production Process: | Injection Molding |
| Interface Type: | AC/DC | Contact Material: | Copper Gold Plated |
| High Light: | 1000mm waterproof electric cable,M12 Waterproof Cable Wire |
||

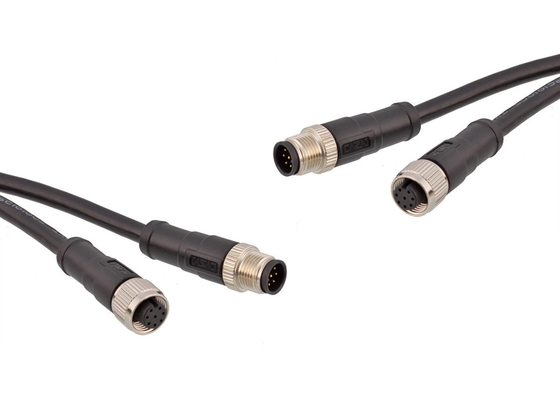

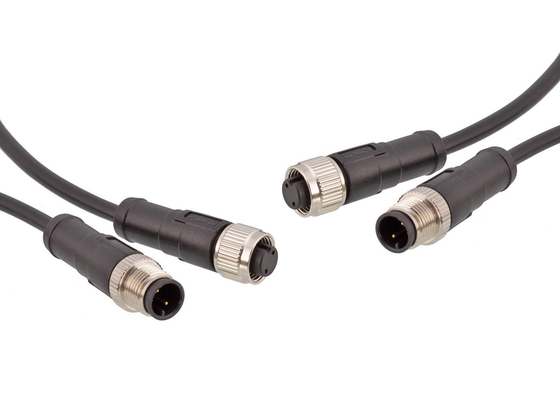

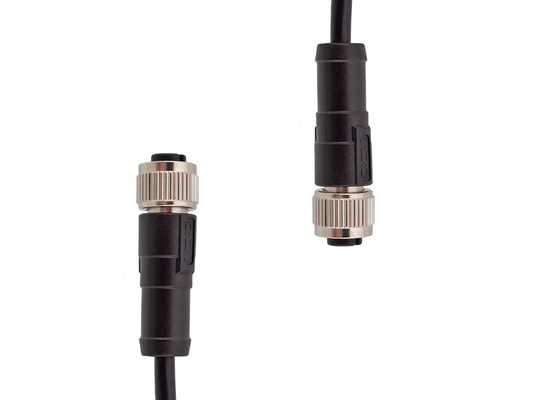

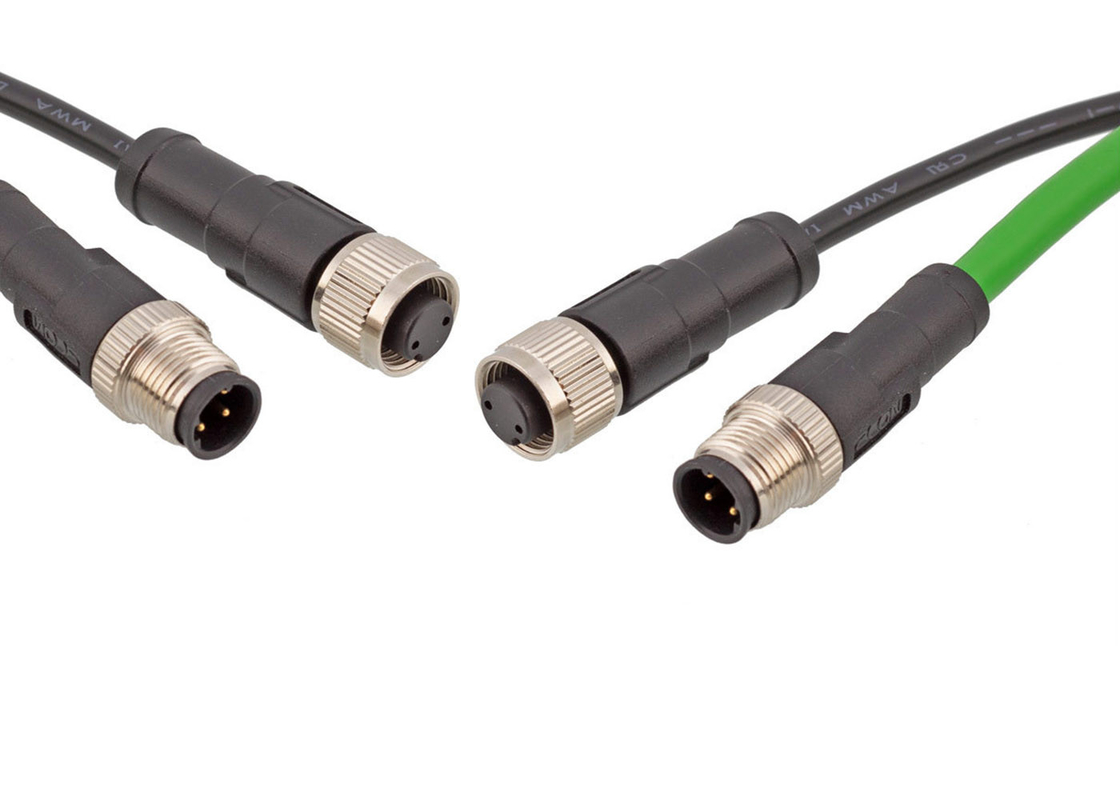

M12 Connector Waterproof Electrical Cable M12 Shielded Plug Ip67 Waterproof Cable Wire PVC Spring Wire
Product introduction
Waterproof: IP67
Description: M12 injection molded plugs have straight plugs and curved plugs, shielded and unshielded. The wiring harness is divided into PVC/PUR, and the products have various forms and are widely used.
Parameter:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-W002 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire Materials |
Wires can be UL certified PA66 for connectors; copper or stainless steel for terminals |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | M12 or Customized |
| Length | 1000mm or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
| Pins number |
Reted current |
Reted voltage |
Contact resistance |
Insulation resistance |
IP-Code | Cable Specifications |
Cable range |
| 2 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 3 | 8A | 110V AC | 10mΩ | 200MΩ | IP67 | ≦1.0mm² | 0-7.5mm |
| 4 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.75mm² | 0-7.5mm |
| 5 | 5A | 80V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| 6 | 4A | 60V AC | 10mΩ | 200MΩ | IP67 | ≦0.5mm² | 0-7.5mm |
| Operating temperature | PA66:-40～105℃ | ||||||
| Connection mode | Threaded | ||||||
| Operation frequency | Low frequency | ||||||
| Interface Type | AC/DC | ||||||
| Contact material | Gold-plated copper | ||||||
Our advantage
1. 100% Tested Before Delivery.
2. Prompt Delivery
3. Free Samples .
4. Favorable And Competive Price
5. Short lead time
6. Professional design ability.
7. Provide a full set of connection solutions
8. High performance
9. After-sales guarantee
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
