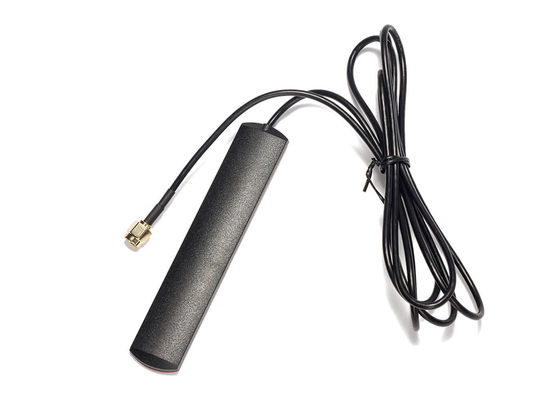

115.4*21.6mm 700MHz 5Dbi High Gain Wifi Antenna

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Sanyouhe
Certification:	UL、IATF、ISO
Model Number:	SYH-H003

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	One product with one PE bag packaging , then outside carton
Delivery Time:	3-15 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/Pieces per week

Contact Now

Detailed Product Description

Frequency Range:	700-2700（MHz）	Connector:	SMA Male
Gain:	5Dbi	VSWR:	≤ 2.0

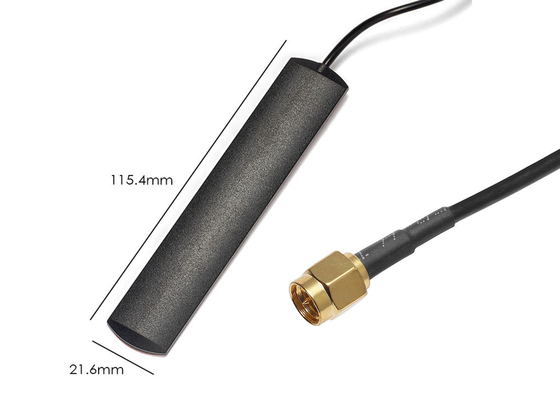

Antenna Size:	115.4*21.6mm	Impedance:	50Ω
Polarization:	Vertical	Color:	Black Or Customized
High Light:	5Dbi High Gain Wifi Antenna , 700MHz high gain sma antenna

4G Full Frequency LET Cabinet Antenna LCD Display Module Integrated Machine Antenna Patch Antenna

Product introduction

About Patch Antenna:

Patch antenna is a pie-shaped directional antenna, suitable for covering a single layer of small offices, small shops and other access points can not be placed in a central indoor location. The patch antenna produces a hemispherical coverage surface, which propagates from the installation point, and the propagation range is between 30 degrees and 180 degrees.

Patch antennas are also called panels, flat panels, or microstrip antennas. They are composed of two metal plates (one of which is larger than the other), with a sheet-like dielectric in the middle. This antenna is usually installed in white or black plastic, which not only protects the antenna, but also facilitates installation. Because they are flat, thin and lightweight, patch antennas are often hung on walls or ceilings.

Parameters:

Place of Origin	Jiangsu,China
Brand Name	SYH
Model Number	SYH-H003
Frequency	700-2700Mhz

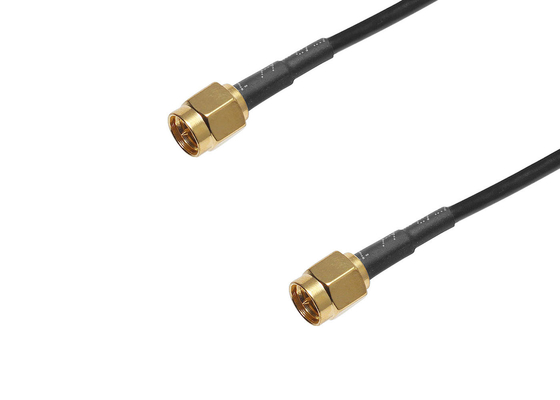

Connector	SMA male
V.S.W.R	≤2.0
Gain	5dbi
Antenna length	115.4*21.6mm
MOQ	Small quantity can be accepted
Sample	Sample can be provided for evaluating
Sevice	OED ODM accepted
Delivery Time	3-15 days upon receipt of payment
Packaging	One product with one PE bag packaging , then outside carton
Test	100% tested before goods sent out

Commonly used antenna types:

(1) External glue stick antenna: good performance, no need to debug, easy to replace, high gain, suitable for various terminal equipment.

(2) SMT patch type: The commonly used ceramic antenna has a small footprint, high integration, and is easy to replace. It is suitable for products with small space requirements, but this type of antenna is slightly more expensive and has a smaller bandwidth.

(3) On-board PCB antenna: It is etched by PCB, with low cost, but with limited performance and good adjustability. It can be used in large quantities for Bluetooth and WiFi wireless communication modules.

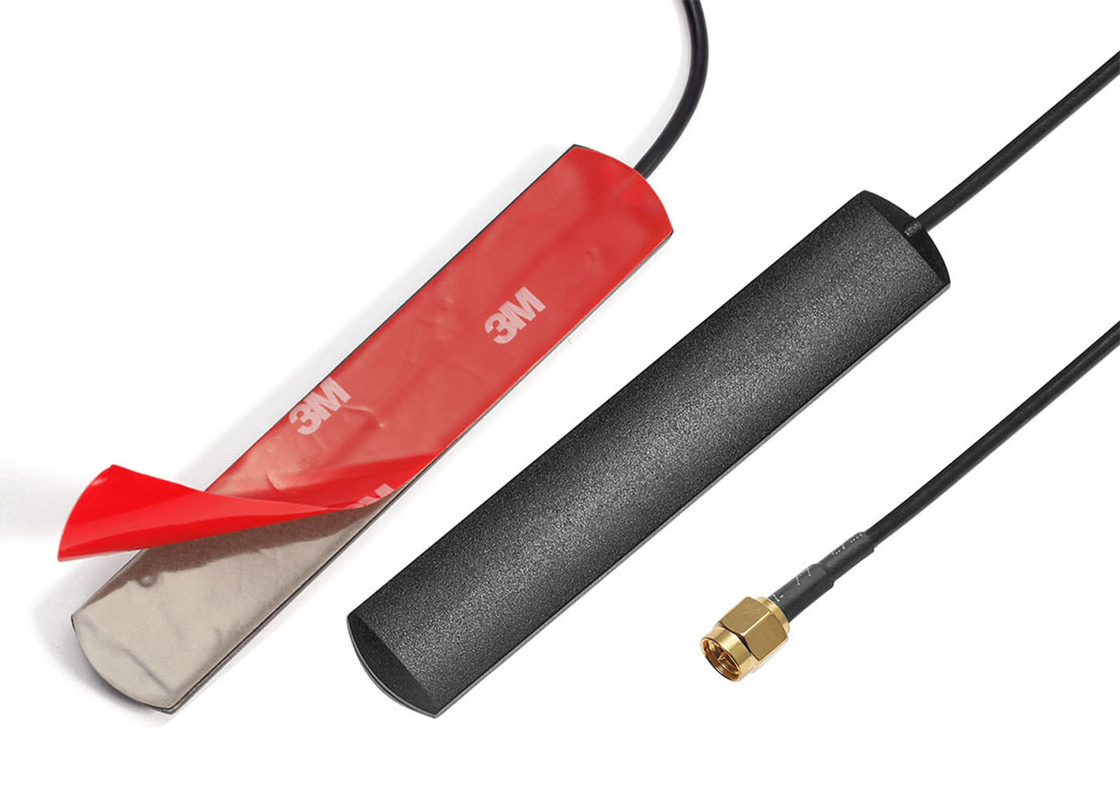

(4) FPC antenna: connected by feeder, it is free to install and has high gain. It can usually be pasted on the non-metal casing of the machine by using adhesive.

☀ Our wifi antennas can be made in different gains and frequency, if you need, we can accept customized.

☀ Our wifi antennas can be made with different connectors such as sma connectors, tnc connectors and n connectors.

☀ We can also produce GSM antennas, indoor or out door panel antennas, sucker antenna and so on.

☀ If you need, we can also customized cable assembly used in antnna like sma to IPEX/UFL cable assemblies. For this product, please contact our sales deparment and get more details.

☀ If you require a special antenna not found here, you can create your own antenna by calling our sales department.
