ISO PVC 5 Pins 20 AWG 150mm Electronic Wiring Harness

O-ring Electronic Wiring Harness 150mm 20AWG 5pins PVC Electronic Connection Wire

Product introduction

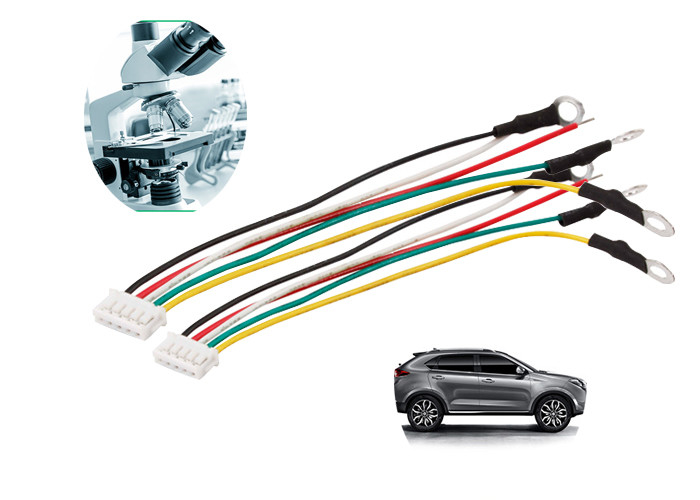

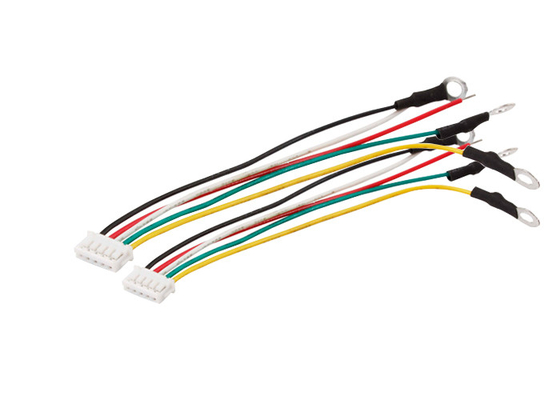

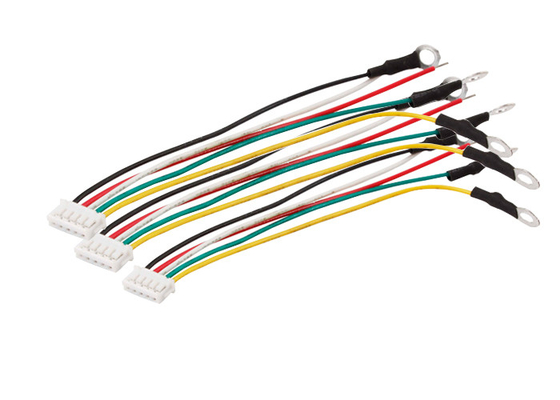

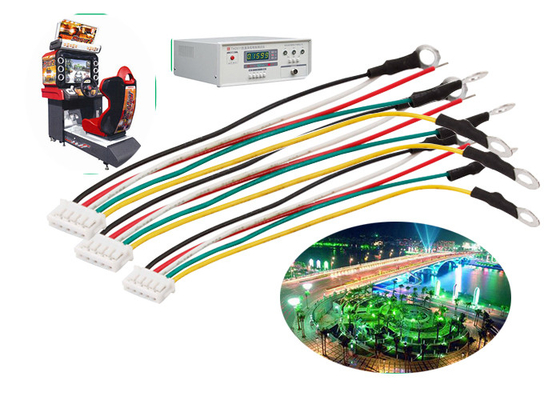

The wire harness is designed and manufactured with two connectors :one is O-Ring connectors ,another is normal JST 5pins 1.5mm connectors  .The pitch is 1.5mm (can be customized ),customer choose 5 different colorso  to make a difference with other wire and pins . The whole wire harness are manufacture according to customer requirements such as connector ,length ,tinned length ,insulation length color order and etc.

Parameters:

The quality of the wire harness material directly affects the quality of the wire harness. The choice of wire harness material is related to the quality and service life of the wire harness. In the selection of wire harness products, don't be greedy for cheap, cheap wire harness products may use poor quality wire harness materials. How to distinguish the quality of the harness? Understand the material of the wiring harness. The following is the material of wire harness selection.

The wiring harness is generally composed of wires, insulating sheaths, terminal blocks and packing materials.

1. Material selection of terminal

The copper used for terminal materials (copper parts) is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion. In addition, different coatings can be selected according to different needs.

Second, the choice of insulating sheath

The commonly used materials of sheath material (plastic parts) are PA6, PA66, ABS, PBT, pp, etc. According to the actual situation, flame retardant or reinforcing materials can be added to the plastic to achieve the purpose of reinforcing or flame retardant, such as adding glass fiber reinforcement.

Third, the choice of wire harness

According to the different use environment, choose the corresponding wire material.

Fourth, the choice of dressing materials

Wire harness bandaging plays the role of wear resistance, flame retardant, anticorrosion, interference prevention, noise reduction, and beautification of appearance. Generally, the bandage material is selected according to the working environment and the size of the space. There are usually adhesive tapes, corrugated pipes, PVC pipes, etc. in the choice of packing materials.

Our Advantages:

1. Factory and trade integration,

2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;

6. High Trade Assurance Level

Shipping:

1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;

2. By Air or by Sea for batch goods;Airportport receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.

FAQ

Q: What are wiring harnesses used for?

A: Wiring harnesses are used in everything from remote control cars to jumbo jets. For example, the desktop computer you may be using currently has a myriad of different harnesses for data and power transfer, all to let you view a page like this one. Inside your vehicle are reams of cables, wires, terminals, and connectors that have to run through the entire vehicle in order to connect all the different components that allow you to simply drive from A to B. The harness itself sounds simple, but it can be rather complex when different connections, terminations, conductor sizes, sheathing, strain reliefs, and many other considerations have to come into play depending on the needs of the project. Our engineers design a complete system around the wires and cables needed to power electrical systems, transfer high speed data, and send and receive signals. If you’re ready to discuss your project’s unique requirements, talk over your options with a knowledgeable representative now.

Q: Are there different types of wiring harnesses?

A: The different types of wiring harnesses is only limited by your imagination. As we continue to increase our reliance on electrical systems powering even simply devices, the engineering inside of these applications requires custom made wiring and cable harnesses to complete the intended application. Each project requires its own custom set-up in order to be designed and manufactured to be able to effectively complete the task required of it. As you can imagine, this will be quite different for a remote control car versus a fighter jet, yet each require exact engineering design in order to function. From military applications, industrial, medical, telecommunications, and almost every industry in between, we design custom wire harness solutions that work.

Q: Are all aftermarket wiring harnesses the same?

A: Definitely not. Unfortunately, shoddy manufacturers abound and buying a harness from a non-reputable wiring harness supplier can put your project’s assets at serious risk of failure. At SYH, we follow strict quality assurance/quality control procedures, use and maintain UL® standards for wiring, and are proud to have received and maintain ISO 9001:2015 certification for quality. We do all of this to ensure we remain wire harness and cable assembly manufacturers of distinction, engineering the precise solutions our clients demand, and making sure these systems are robust enough to stand up to years of use.
